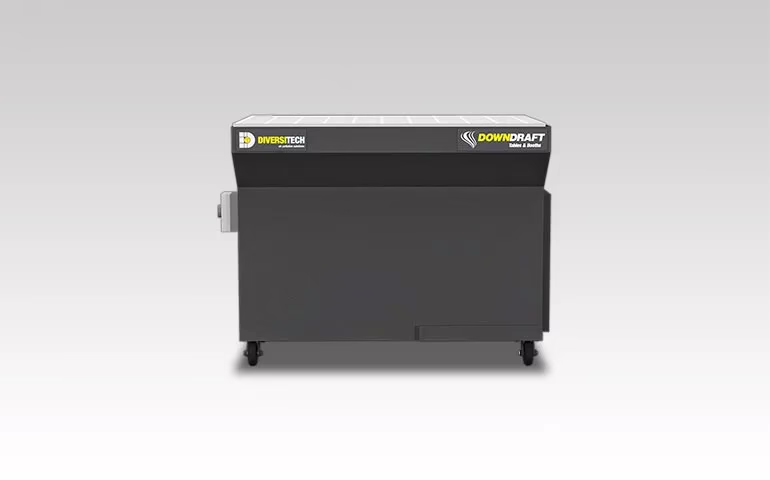

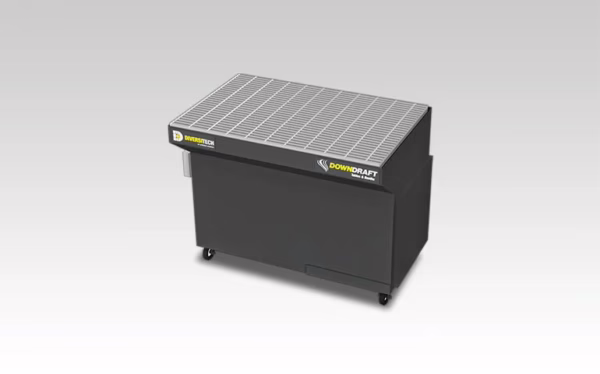

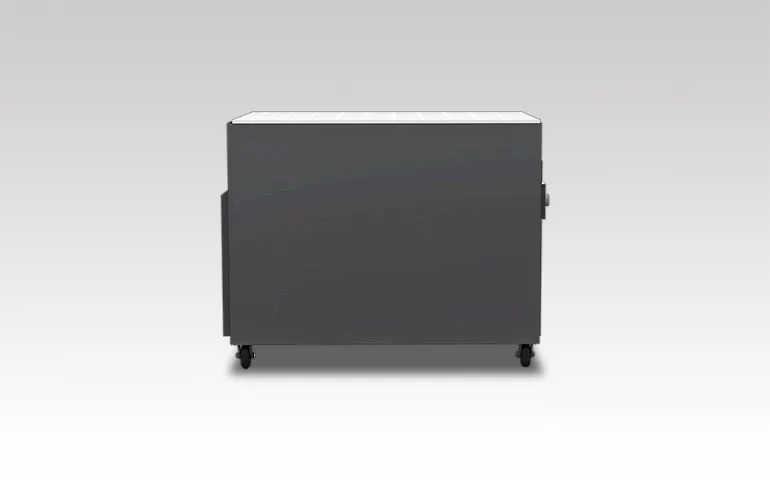

DD 2' X 4' Downdraft Table

Overview

Designed for industrial duty applications, the DD 2' X 4' Downdraft Table is portable, reliable and easy-to-use for the collection of dust, smoke, and fumes, captured right at the source, so indoor air quality remains uncompromised. Whether you weld, grind, debur, cut, sand, finish, solder, paint or mix, the DD 2' X 4' Downdraft Table provides the perfect, flexible, all-in-one solution.

The downdraft table also comes fitted with multi-stage spark arrestance baffles, industrial swivel casters and a push-button, reverse-pulse filter cleaning system to reduce maintenance. Choose from a 1.5HP 1500CFM single phase [120V] motor, or 3.0HP 2600CFM three phase [230/460/575V] for higher capture face velocity. Single phase models include a 15’ power cord for plug and play convenience.

With many options and accessories available, the DD 2' X 4' Downdraft Table can be custom built to your specific needs.

Benefits

• Simple to use, plug and play design
• Ultra-small footprint & no permanent ducting
• Capture-at-source for cleaner air
• Compliant with OSHA guidelines for safe capture of dust, smoke and weld fumes

Features

• Flexible 32” x 48” worksurface
• High Capture face velocity (250 FPM)
• On-demand, reverse pulse cleaning system
• Multi-stage spark arrestance baffling
• Industrial swivel-casters

Options

• Lexan or hinged Side and Back Walls
• Side stack Silencer
• Backdraft Hood
• Dust-proof Light Kit
• Minihelic Gauge
• Metal Mesh or Paint Arrestor Pre-filter
• 2” high Steel Bar Grating
• ..and more!
