FRED Sr. Wall-Mounted Fume Extractor

Overview

A professional grade fume extractor, the FRED Sr. Wall-Mounted Extractor is the industry standard for eliminating airborne toxins. Collecting contaminants at source, this stationary extractor has a 2500 CFM, 5 HP blower to ensure a high face-velocity across two movable capture arms.

Equipped with our standard MERV 15 rated Nanofiber filters, the FRED Sr. captures particulate as small as 0.5 micron. Our patented (ICS-360) reduces total cost of ownership by extending filter life expectancy and improving aggregate filter efficiency. Routine service is faster and easier.

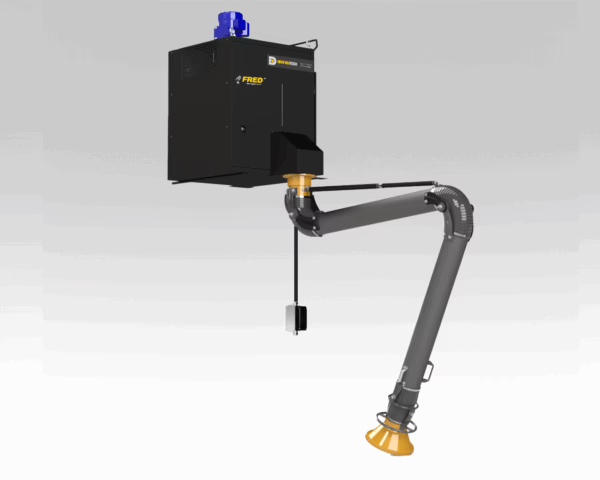

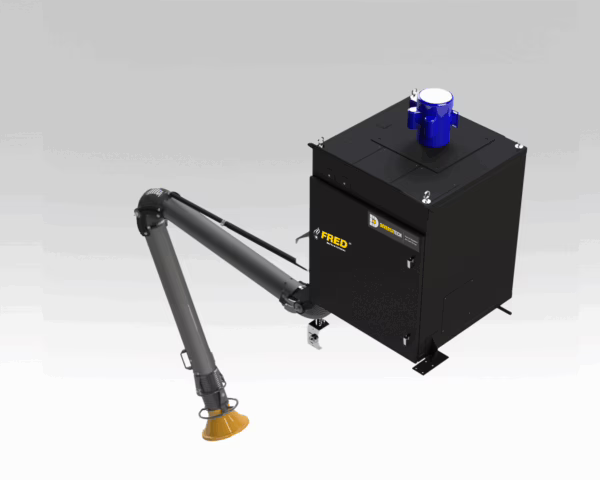

The remote mounting kit is a popular option for applications where extraction arms need to be mounted further away from the blower. The FRED Sr. Wall Mounted Extractor is available with one capture arm (FRED SR1 C) or two (FRED SR2 C).

Benefits

• Automatic filter cleaning makes service easy
• Compact and easy to operate
• Capture-at-source for cleaner air
• Compliant with OSHA guidelines for controlling weld fumes

Features

• Single or Dual, 10’ Externally Articulated Extraction Arms
• ICS-360 Injection Self-cleaning System
• 21” Easy-to-service Nanofiber Filter (MERV 15)
• 2500 CFM, 5 HP Blower

Options

• Choice of flexible, externally articulated capture arm: 6.5’, 10’, 13’
• Automatic self-positioning, Fume Tracker™ capture arm
• Minihelic Gauge
• Odor Absorption Kits
• After-filter Module, with HEPA Filter
• Spunbond Polyester Filter Cartridges (washable)
• Hood-mounted LED Light Kit
