FRED Sr. II Dual-Arm

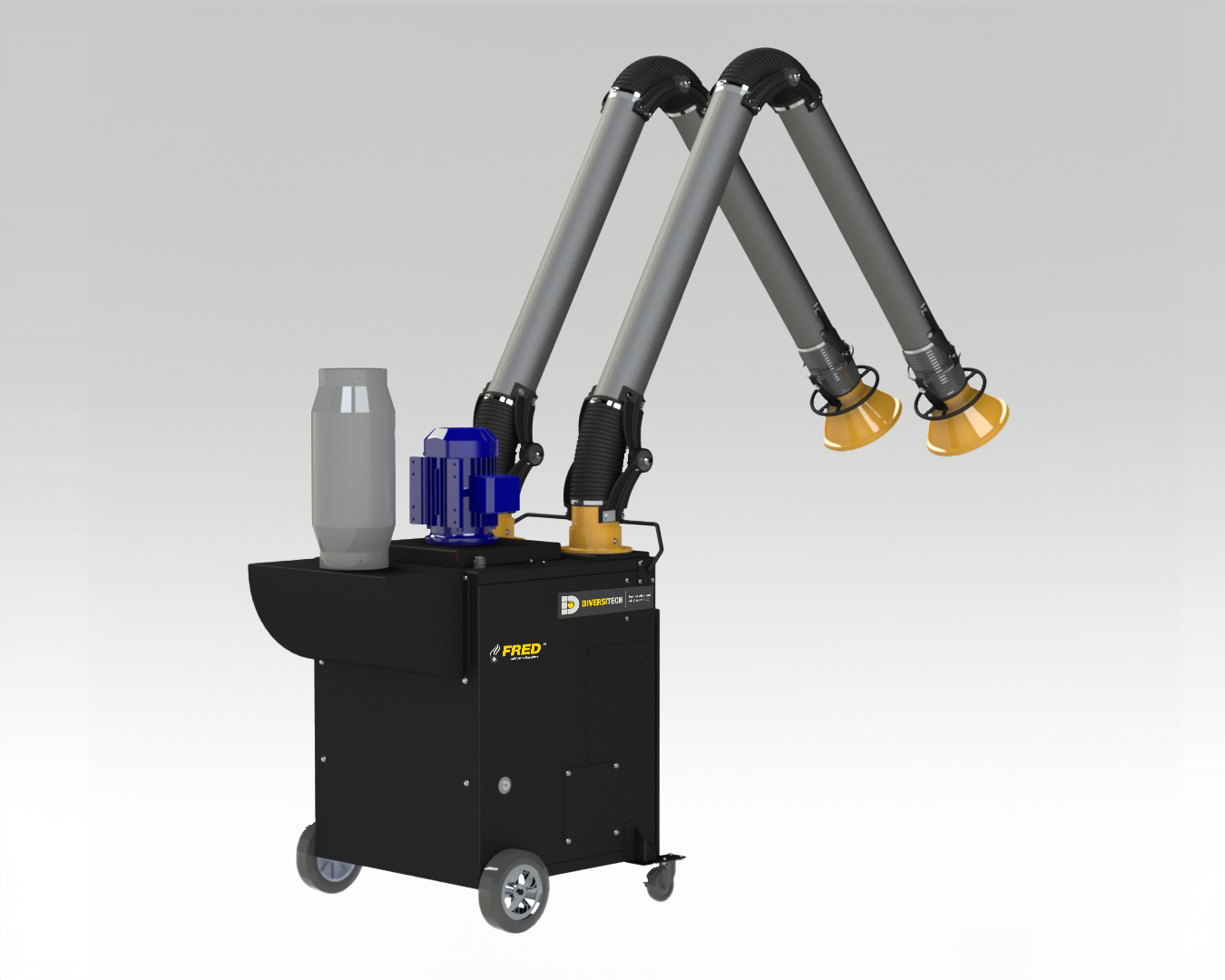

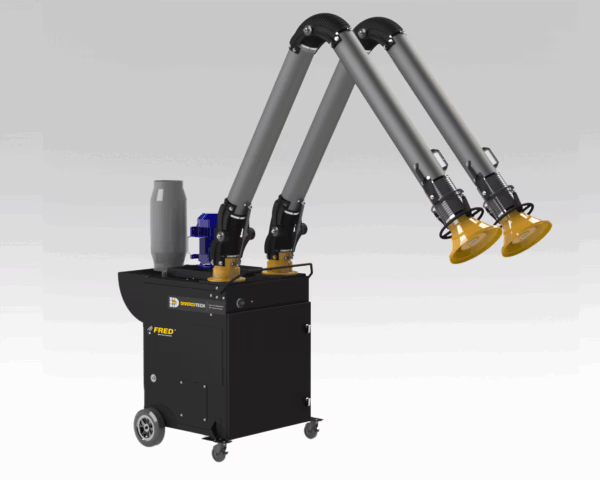

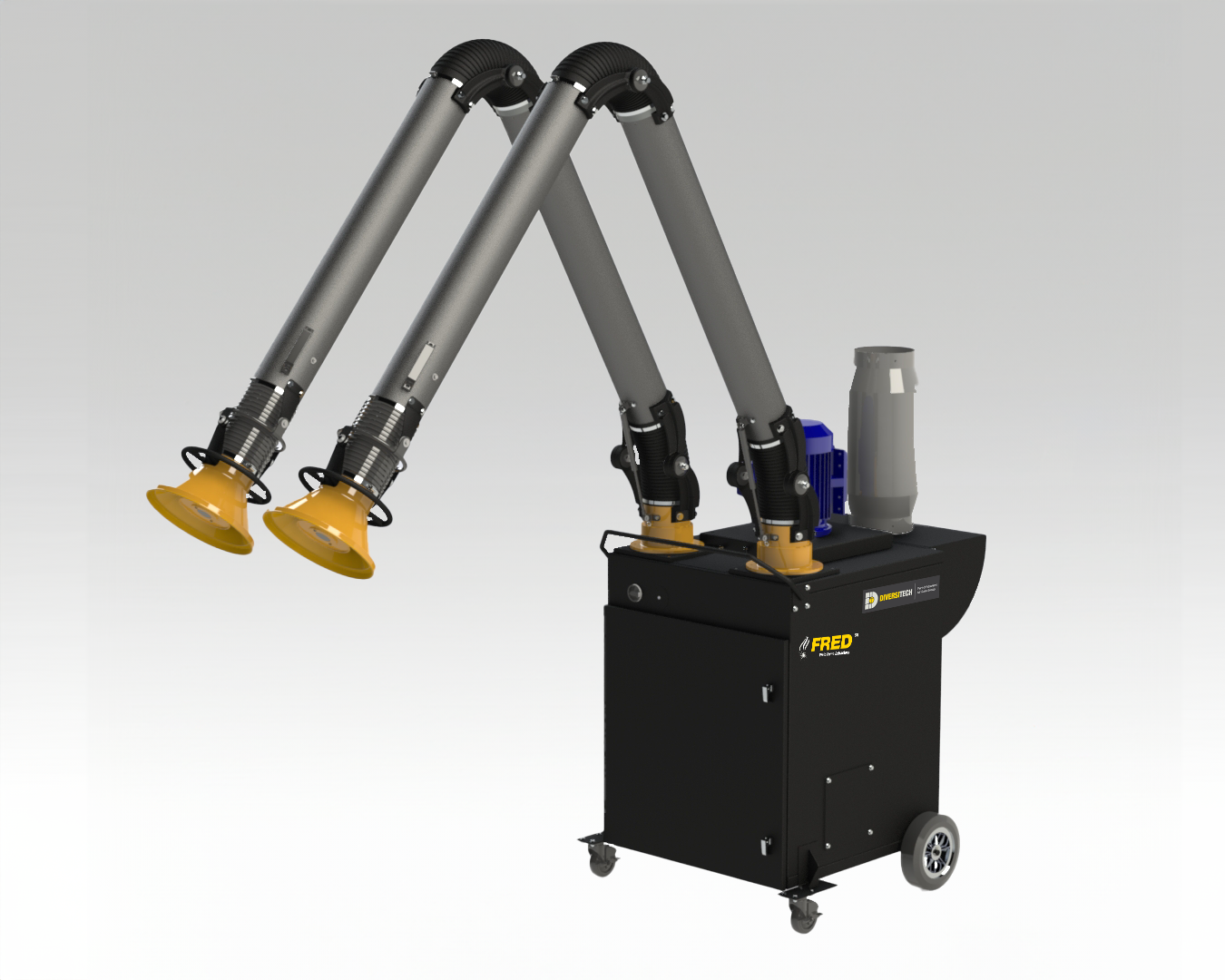

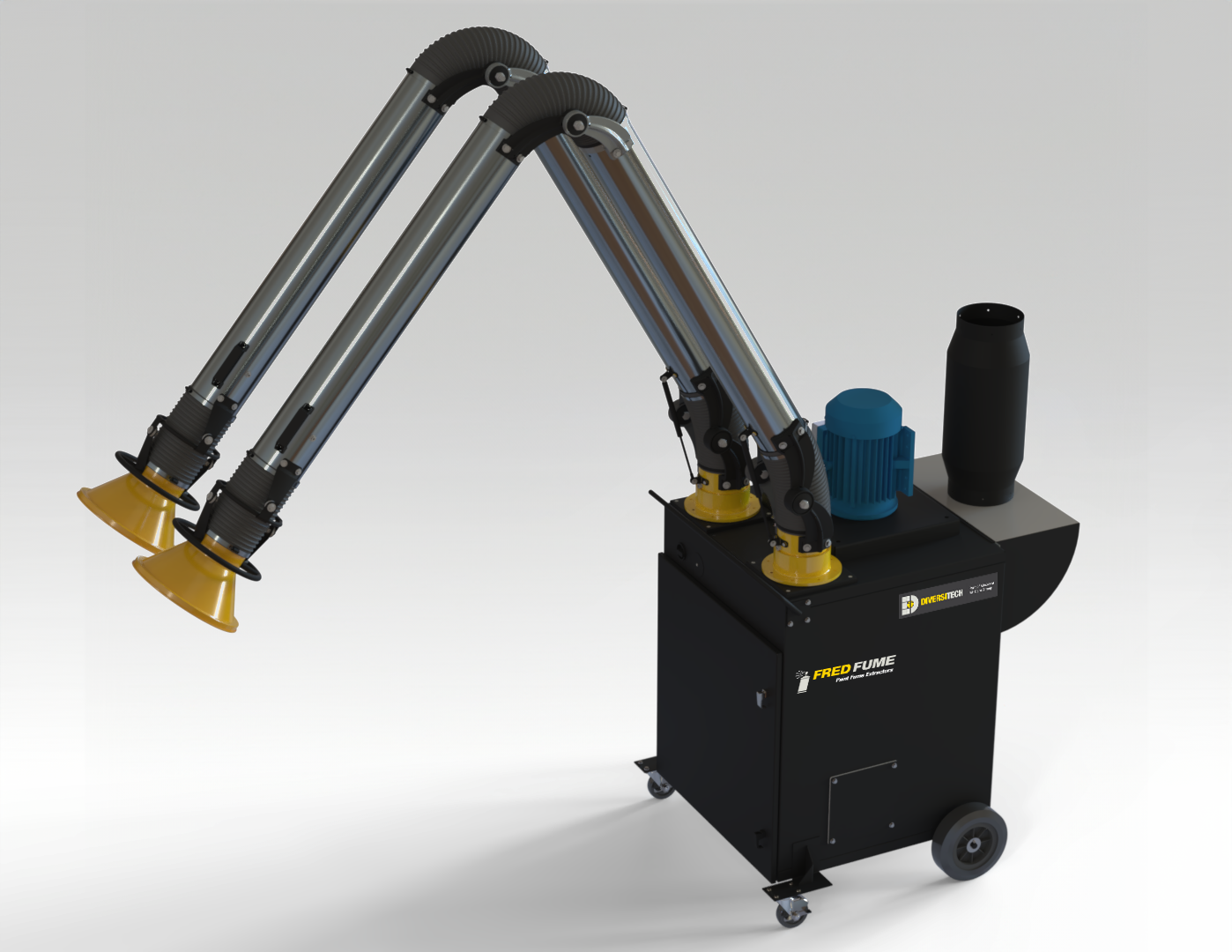

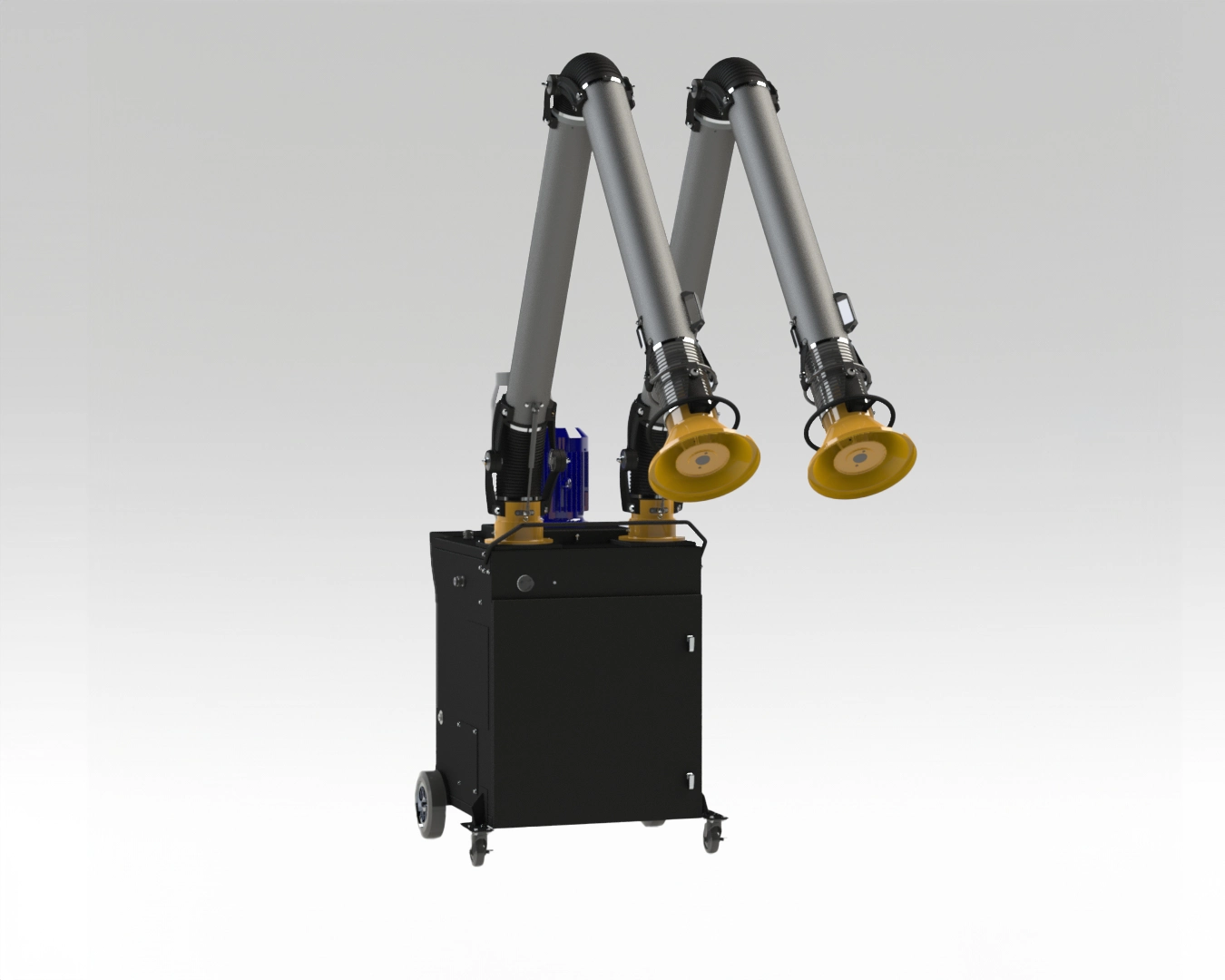

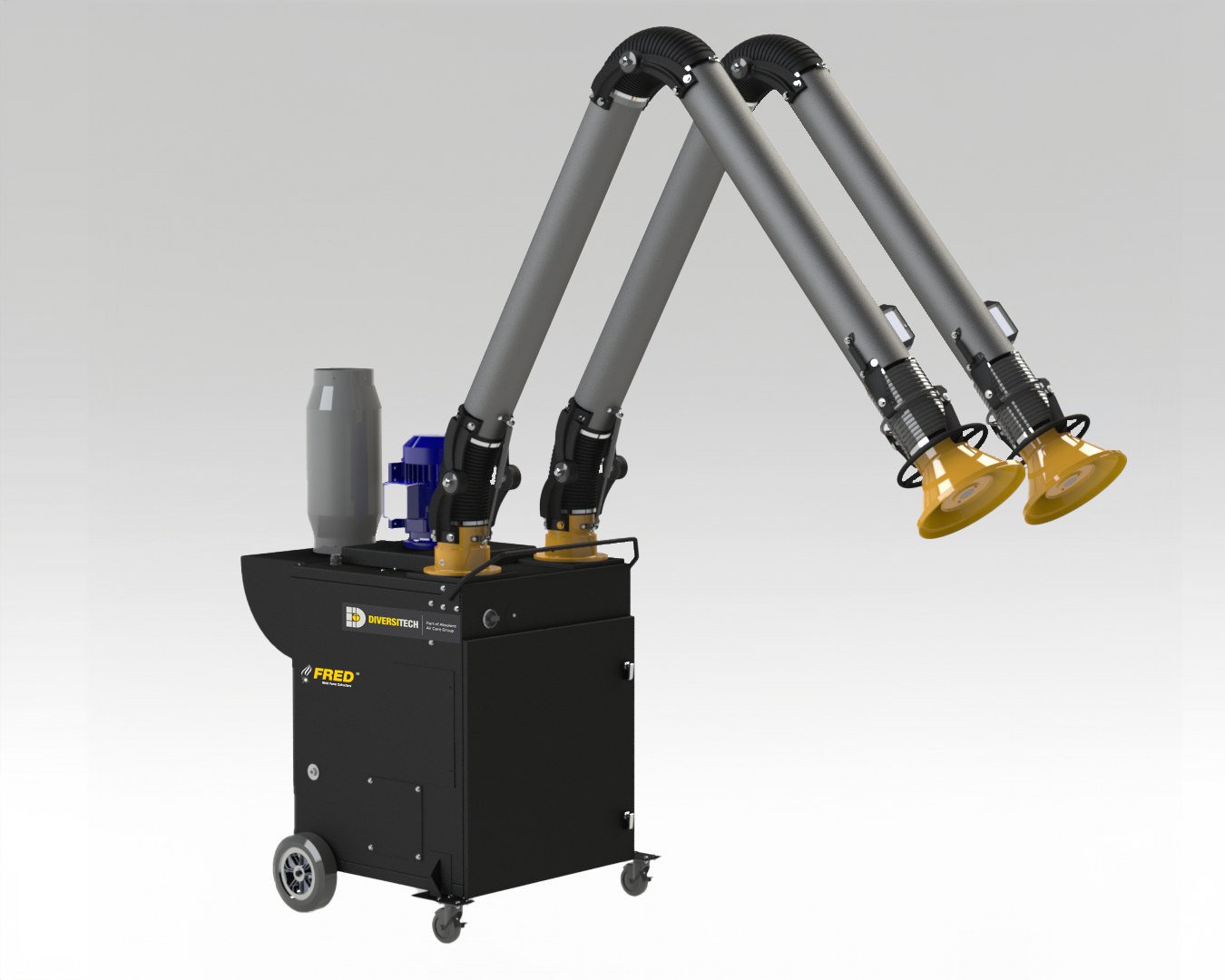

A professional welding smoke extractor, the FRED Sr. II Dual-Arm Portable Fume Extractor is the industry standard for eliminating smoke, dust, and fumes from the air. A 2500 CFM, 5HP blower ensures a high face-velocity across two independently movable capture arms. Equipped with our standard MERV 15 rated Nanofiber filter, FRED Sr. II can remove particulate matter as small as 0.5 micron from the surrounding air of welding stations and other industrial operations.

Our patented Injection Self-Cleaning System (ICS-360) extends filter life expectancy while improving aggregate filter efficiency. Routine service is made faster and easier compared to manual cleaning systems, reducing total cost of ownership for our portable fume extractors.

Recommended Applications

Ideal for welding.
Ideal for grinding.
Ideal for deburring.
Not Ideal for soldering.
Not ideal for sanding
Not ideal for painting

Overview

Benefits

FRED Sr. II’s benefits can be realized as soon as it finds a place on your shop floor. Just a few of these benefits include:

Automatic Filter Cleaning makes service easy
Compact, portable and easy to operate
Capture-at-source for cleaner air
Compliant with OSHA guidelines for controlling weld fumes

Features

FRED Sr. II is loaded with features for high efficiency and versatility, including:

Dual, 10’ externally articulated capture arms
ICS-360 Injection Self-Cleaning System
21” easy-to-service Nanofiber filter (MERV 15)
Rotary starter with 15’ power cord & casters

Options

Need specialized tools for your application? FRED Sr. II can be ordered with customizable options like:

Choice of flexible, dual externally articulated capture arms: 10’, 13’
Odor Absorption Kits
Minihelic Gauge
Spunbond Polyester Filter Cartridges (washable)
Afterfilter module, with HEPA Filter
Hood mounted LED light kit

Models and Options

The FRED Sr. II Dual-Arm Portable Fume Extractor base model comes equipped with a 230V, 5.0 HP motor and dual, 10’ externally articulated capture arms, but the following options are also available upon request:

2 x 10 Capture Arm / 5.0 HP – 575V

Up to 2500 CFM

Capture Arm: 2 x 10
Motor: 5.0 HP / 575V/3/60Hz
Product Number: FRED-02-050N5

2 x 13 Capture Arm / 5.0 HP – 230V

Up to 2500 CFM

Capture Arm: 2 x 13
Motor: 5.0 HP / 230V/3/60Hz
Product Number: FRED-02-13-050N2

2 x 13 Capture Arm / 5.0 HP – 460V

Up to 2500 CFM

Capture Arm: 2 x 13
Motor: 5.0 HP / 460V/3/60Hz
Product Number: FRED-02-13-050N4

2 x 13 Capture Arm / 5.0 HP – 575V

Up to 2500 CFM

Capture Arm: 2 x 13
Motor: 5.0 HP / 575V/3/60Hz
Product Number: FRED-02-13-050N5

Technical Specifications

Model (Product Number)	Motor (H.P.)	Air Flow (CFM)	Volts/Phase/Hz	Amps	Net Weight¹	Width¹	Height¹	Length¹	Cord Length (ft.)	Arm Length (ft.)	Arm Diameter	Filter Type
FRED-02-050N2	5.0 HP	2500	230V/3/60Hz	13	134.72	32.5	102	33	15	2 x 10	2 x 6″	Nanotech MERV 15
FRED-02-050N4	5.0 HP	2500	460V/3/60Hz	6.5	N/A	32.5	102	33	15	2 x 10	2 x 6″	Nanotech MERV 15
FRED-02-050N5	5.0 HP	2500	575V/3/60Hz	5	N/A	32.5	102	33	15	2 x 10	2 x 6″	Nanotech MERV 15
FRED-02-13-050N2	5.0 HP	2500	230V/3/60Hz	13	136.98	32.5	111	33	15	2 x 13	2 x 6″	Nanotech MERV 15
FRED-02-13-050N4	5.0 HP	2500	460V/3/60Hz	6.5	N/A	32.5	111	33	15	2 x 13	2 x 6″	Nanotech MERV 15
FRED-02-13-050N5	5.0 HP	2500	575V/3/60Hz	5	N/A	32.5	111	33	15	2 x 13	2 x 6″	Nanotech MERV 15

1 – Product weight and dimensions are based on base-models and may vary depending on selected product features. Please contact us for an accurate shipping quote.

Learn how to get the most out of your FRED Sr. II Dual-Arm and troubleshoot common problems.
See our help topics and support videos below, and download the FRED Sr. II Dual-Arm product guide and owner’s manual.

How to..

+ Set up your FRED Sr. II Dual-Arm for the first time

Unpack Unit

Inspect carton for any possible damage during transit and remove packing material.
Use forklifts or trucks to move.
Remove packing material.
Do not tip or invert while handling.
You’ll find the item serial number, model and electrical ratings located on the nameplate. Write down information on the provided Maintenance Record found in the owner’s manual.

Installation

Tools required:

7/16 Socket or Wrench
9/16 Socket or Wrench
Torque Wrench

Mobile Model/Arm-to-Blower Direct Installation

Unpack capture arm, hood, and base.
Attach swivel base to mounting plate:
- Mount Swivel Base to Mount Plate.
- Tighten all Bolts (8) with Washers (8).
- Torque each bolt to 23 N m
Attach capture arm to swivel base:
- Insert Spacers (3) between Capture Arm Mounting Bracket.
- Thread Bolts (3) with Washers (3) through Mounting Bracket and Spacers.
- Mount Capture Arm Assembly to Swivel Base.
- Thread Washers (3) and Locking Nuts (3) to Bolts (3).
- Tighten all Bolts (3) to Locking Nuts (3).
- Torque each bolt to 40 N m
Install flex hose:
- Mount Flex Hose to Swivel Base and Capture Arm.
- Tighten Both Hose Clamps.

Wall/Ceiling Mounted Model Installation

Wall mount bracket standard assembly:
- Mount Swivel Base to Remote Mount Bracket.
- Tighten all Bolts (8) with Washers (8)
- Torque each bolt to 23 N m
Attach capture arm to swivel base:
- Mount Swivel Base to Remote Mount Bracket.
- Tighten all Bolts (8) with Washers (8).
- Torque each bolt to 23 N m
Attach J-Bracket to Arm Swivel:
- Mount J-Bracket to Swivel Base.
- Tighten all Bolts (8) with Washers (8) and Nuts (3).
- Torque each bolt to 34 N m
Attach Capture Arm to Swivel Base. (J-Bracket):
- Insert J-Bracket between Capture Arm Mounting Bracket.
- Thread Bolts (3) with Washers (3) through Mounting Bracket and J-Bracket.
- Thread Washers (3) and Locking Nuts (3) to Bolts (3).
- Tighten all Bolts (3) to Locking Nuts (3).
Install flex hose:
- Mount Flex Hose to Swivel Base and capture Arm.
- Tighten Both Hose Clamps.

+ Perform Function Test

Before you use your unit, you’ll want to perform a function test to verify it’s in working order.

Confirm correct Voltage and Amperes
Close front and back doors.
Turn the power switch to “On”.
Look to confirm that the unit is level and stable. Verify nothing is obstructing extraction path.
Listen closely to the motor and suction sound of the unit. Are they within the expected noise limits?
Place hand on top of the unit and feel for any unexpected vibration. Place your hand in front of the intake surface to confirm the expected levels of suction.

+ Perform Routine Maintenance

Weekly Inspection- Empty Dust Drawer

Remove dust drawer and deposit accumulated particulate in appropriate waste container. (Dispose according to local regulations.)

Filter Replacement

As required.

Yearly Inspection

Clean labels and exterior surfaces.
Capture Arm: Check for tears in flex hoses and fitting of hose clamps.
Cabinet: Look for loose wiring.
ICS-360 Function Test:
- Open Cabinet Door (keep open).
- Remove Filter.
- Turn unit ON then OFF.
- Observe if ICS-360 cycle initiates (normal delay of 30 seconds).
- Observe if air nozzle passes the complete range (bottom-to-top) of acme shaft.

Troubleshooting

+ Your FRED Sr. II Dual-Arm unit does not turn on

Confirm correct voltage. Make sure the remote switch has been plugged into the correct voltage.
Check fuses. Make sure the fuses are intact and there hasn’t been a loss of power phase.
Check motor rotation. Confirm the correct rotation using the indication arrow located on the motor. If the unit fails to turn on, the unit’s motor could be in reverse rotation and spinning incorrectly. An electrician is required to address the problem.
If the problem continues, contact Diversitech support for assistance.

+ The cleaning mechanism is not functioning

Confirm correct voltage. Make sure the transformer (Primary and Secondary) has been plugged into the correct voltage.
Check the nozzle tip. The nozzle tip should contain 2 magnets. For the cleaning mechanism to function properly, the magnets need to be maintained in place at all times.
If the problem continues, contact Diversitech support for assistance.

+ Dust is escaping through the exhaust stack

Check the filter latch. Readjust the filter latch as needed to keep the filter sealed into place.
Verify the condition of the filter gasket. Check the filter gasket for bypass, damage tears or rips.
Check the inside of the cleaning mechanism. If the mechanism is dirty on the inside, maintenance is required.
If the problem continues, contact Diversitech support for assistance.

Guides

No data available.

Videos

A Closer Look at FRED Sr. II Dual-Arm

Get an in-depth look at FRED Sr. II Dual-Arm and explore its key features in action.
This video showcases how it works, its standout benefits, and why it’s the perfect choice for you. Watch now and experience the innovation firsthand!

Slides

Swipe Through the Details of FRED Sr. II Dual-Arm

Get an in-depth look at FRED Sr. II Dual-Arm and explore its key features in action. This video showcases how it works, its standout benefits, and why it’s the perfect choice for you. Watch now and experience the innovation firsthand!
