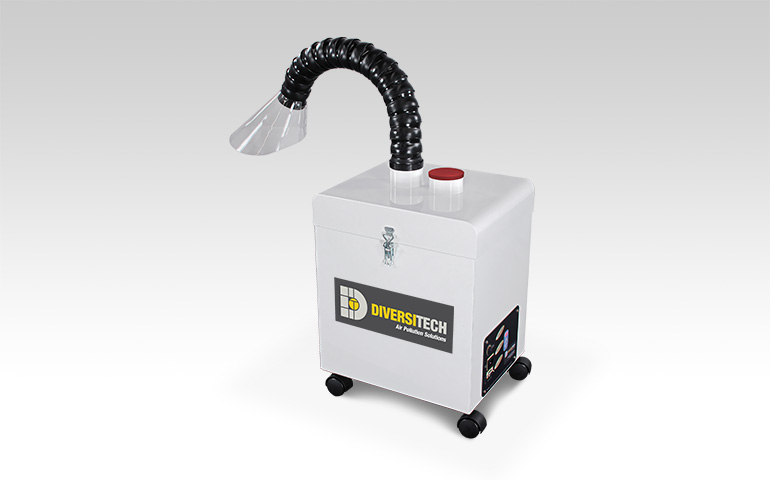

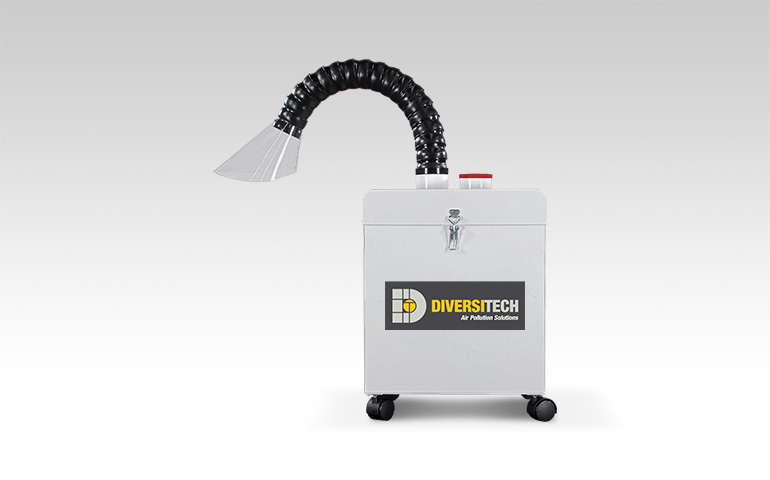

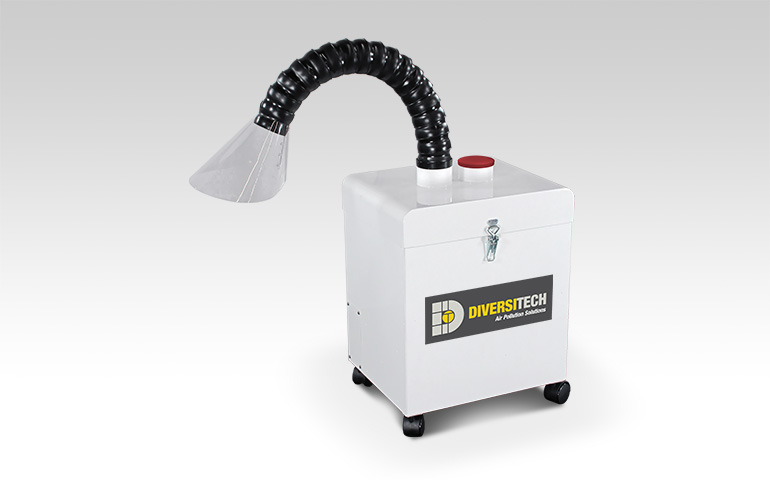

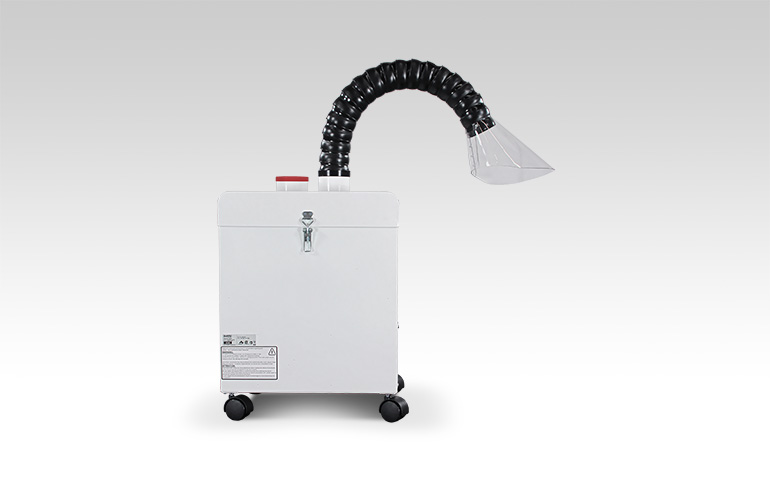

SPB 560

The perfect portable air-cleaning solution, the SPB 560 portable fume extractor removes airborne contaminants from light to medium-duty soldering operations and similar applications.

The SPB 560 captures solder fume smoke and processes dust at source, before they migrate into your work space. Completely versatile, this portable fume extractor can be set in a vertical or horizontal position, on a bench-top or on the floor. Its patented FlexArms allow for single or dual workstation configuration.

Overview

The perfect portable air-cleaning solution, the SPB 560 portable fume extractor removes airborne contaminants from light to medium-duty soldering operations and similar applications.

A great ventilation solution for soldering, heat bending, dental grinding, light welding, sanding and grinding, solvents, mixing powders and chemicals, wire stripping, jewelry buffing and many other light to moderate industrial and laboratory activities.

Benefits

Beyond portability and flexible configuration, SPB 560 also exhibits the following benefits:

Compliant with OSHA guidelines for controlling weld fumes
Capture-at-source for cleaner air
Compact, portable, and easy to operate

Features

This extractor holds useful features that make it a suitable tool for a variety of settings from the shop floor to a medical facility:

120 volt, single phase
Low-profile, light duty solder fume extractor
White powder coated standard with heavy gauge steel construction
Multi-stage filtration system: pre-filter, HEPA and chemical filter
Whisper quiet operation, less than 52 dBA
FlexArms allow for single or dual workstation configuration
2 ft. capture arm

Options

Get the best in fume extraction efficiency with the optional SPB 560 dual-arm configuration.

Models and Options

Technical Specifications

Model	Motor (H.P.)	Air Flow (CFM)	Input Power				Net Weight (lbs.)	Noise @5ft (dB)
Model	Motor (H.P.)	Air Flow (CFM)	Phase	Volts	Hz	Amps	Net Weight (lbs.)	Noise @5ft (dB)
SOLDER-VAC2-02-008A1	0.5 HP	300	1	120	60	1.6	45	52

Dimensions¹

Model	Filter Type	Cord Length (ft.)	Arm Length (ft.)	Product Dimensions (in.)
Model	Filter Type	Cord Length (ft.)	Arm Length (ft.)	Width	height	Length
SOLDER-VAC2-02-008A1	2″ HEPA	6	2	13	20	16

1 – Product dimensions are based on base-models and may vary depending on selected product features. Please contact us for an accurate shipping quote.

Filter Specifications

Filter Type	Part #	Filter Area (sq. ft)	Filter Efficiency	Reusable
Paper Pleated(standard)	S-SV-0001	N/A	MERV 10	N/A
HEPA (optional)	S-SV2-0002	N/A	H13	N/A
Carbon (optional)	S-SV2-0003	N/A	N/A	N/A

Learn how to get the most out of your SPB 560 and troubleshoot common problems.
See our help topics and support videos below, and download the SPB 560 product guide and owner’s manual.

How to..

+ Set up your SPB 560 for the first time

Unpack Unit

Inspect carton for any possible damage during transit.
Use forklifts to move.
Do not tip or invert while handling.
You’ll find the item serial number, model and electrical ratings located on the nameplate. Write down information on the provided Maintenance Record found in the owner’s manual.

Installation

Unpack capture arm, hood and base.
Install pads and filters:
- Install dust pad first.
- Remove plastic wrap on odor filter. Install second.
- Install HEPA filter third.
Install unit lid:
- Install fume extraction arm into inlet.
- OR, if installing arm onto workbench, install flex hose into inlet.
Install Extraction Arm (c/w slide-gate):
- If unit mounted, fume extraction arm can be installed directly onto unit’s lid.
- OR, if Bench-mounted, Arm can be installed onto Z bracket.
Z bracket can be installed onto workbench.
6-foot Flex Hose connects fume extraction arm to unit lid.

+ Perform Routine Maintenance

Filter Replacement

Open top with Phillips screwdriver.
Carefully pull up filters, drop clean filters gently into place:
- Confirm there are no obstructions in filter track.
HEPA filters should be installed with gaskets facing down on filter tracking.
Careful to not damage exposed portions of the HEPA filter. Do not bend aluminum separators.

+ Perform Chemical Filter Tray (S-SV2-0003, S-SV2-0004) Maintenance

Replace chemical filter approximately every twelve months OR immediately following any detection of Rhodium or other odor from the discharge of the system.

To Replace Your Odor Filter

Ensure that the unit is unplugged, open door with appropriate tool.
Pull out the existing S-SV2-0003 or S-SV2-0004, remove new S-SV2-0003 or S-SV2-0004 from the box that it was shipped in.
Reinsert new filter back into the system (ensure airflow arrows are pointing up).
Close door and verify that an airtight seal is maintained.

To Refill Existing S-SV2-0003 or S-SV2-0004 Filter Cell with New Odor Filters

Pull out existing S-SV2-0003 or S-SV2-0004 filter.
Unscrew the two top panel covers and lift off cover.
Pour out used odor filter (wearing a dust mask is recommended).
Refill container with fresh odor filters.
Replace the 2 panel covers and re-insert into unit.

IMPORTANT: Filter disposal is the responsibility of the end-user. Please contact local authorities.

Resetting “Service Filter(s)” Alert

Ensure filter access door is closed.
Plug power back to the unit.
Press & hold SPEED UP & DN simultaneously until unit beeps.
Hold for 10+ seconds, when panel is beeping continuously, release buttons.
You are now in RESET MENU, in this condition, “System ON” LED is flashing quickly.
Press SPEED DN- 2 times until “Service Filter(s)” LED is flashing.
Press & HOLD POWER button while “Service Filter(s)” LED is flashing & unit is beeping continuously.
Release, when LED stops flashing & stops beeping.

Troubleshooting

+ The Unit will not start

There may be a faulty power supply. Check breaker box.
Check the return or supply grille to see if it is blocked. Remove any obstruction.
Check HEPA filter to see if it’s properly installed. Refer to owner’s manual for proper installation.
Check to see if a fuse is blown. Replace any blown fuses.
Check to see if the unit is plugged into receptacle. If not, plug unit in.
If the problem continues, contact Diversitech support for assistance.

+ The Unit is making excessive noise

The blower wheel may be contacting the cone. Realign or replace the wheel.
The fan isolators may be loose or off. Replace isolator.

+ There is insufficient airflow

Check to see if there are any obstructions in system. If so, remove them.
The filters may be clogged. Replace filters.

+ Service Filter LED ON

Check filters. Replace filters and reset microprocessor if needed.

+ Excessive airflow

Check filters. Replace filters and reset microprocessor if needed.
