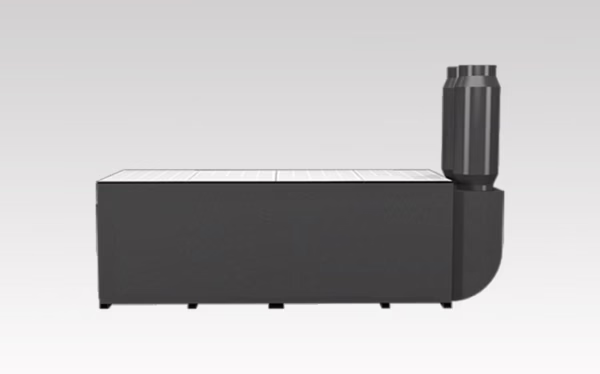

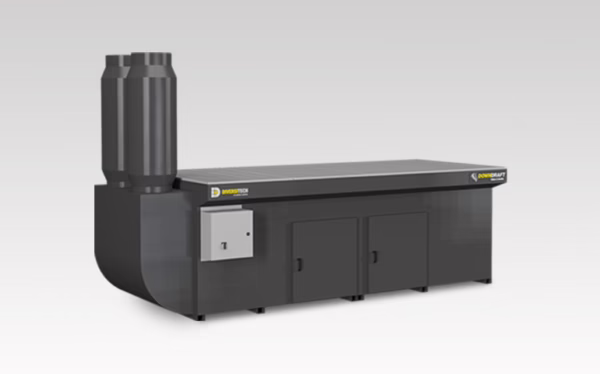

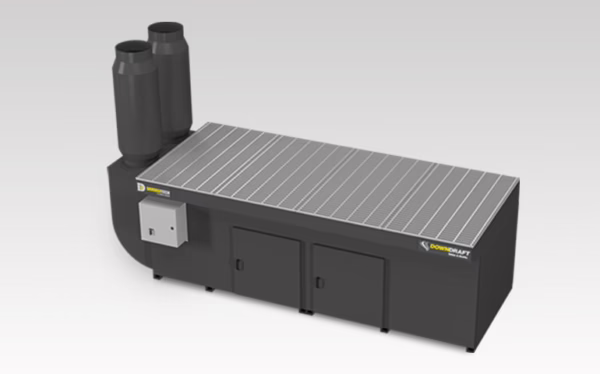

DD 3' X 8' Downdraft Table


Built to withstand tough applications, Diversitech’s DD series of industrial downdraft tables are the trusted brand of North America’s largest manufacturers. The DD 3' X 8' (3′ deep by 8′ wide) ventilated work surface captures fumes, smoke and dust right at source. Cleaner indoor air is guaranteed.

The DD 3' X 8' can be configured to suit dozens of industrial applications. The table comes equipped with a multi-stage spark arrestance baffle for fire prevention and dual 10” exhaust silencers for noise reduction. Its automatic reverse-pulse filter cleaning system helps cut down on overall maintenance requirements.

The DD series of industrial tables can be built-to-order in almost any configuration. Whether you weld, grind, debur, cut, sand, finish, solder, paint or mix, the DD 3' X 8' Downdraft Table provides the perfect, flexible, all-in-one solution.


  • Hands-free, capture-at-source
  • Low maintenance, automatic self-cleaning system included
  • Compliant with OSHA guidelines for safe capture of dust, smoke and weld fumes


  • Flexible 96” x 42” Worksurface
  • High Capture Face Velocity (330 FPM)
  • Multi-stage Spark Arrestance Baffling
  • Automatic Reverse Pulse Self-cleaning System
  • Dual 10” Exhaust Silencers
  • Dust Drawer for easy servicing


  • 3” Swivel Casters, set of six
  • Blue Cushion Grid Matting (96” X 36”)
  • Minihelic Gauge
  • Dual-HEPA Afterfilter (with frame)
