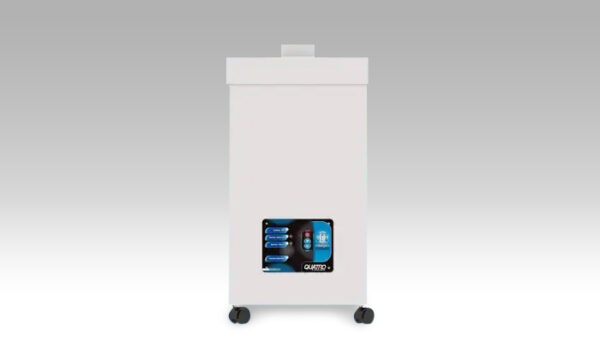

SPH 870

Designed for heavy-duty soldering and laser cutting applications, the SPH 870 Fume Extractor series provides a cost-effective fume extraction solution for multi-station air filtration. This unit can reach a nominal airflow up to 440 CFM, striking the ideal balance between powerful performance and space saving on your shop floor. Featuring a multi-stage filtration system with a variety of filter sequence configurations, an iSeries (digital) control panel, and heavy duty lockable casters for portability, the SPH 870 series provides everything you need in one convenient, multi-station fume extraction solution.

Recommended Applications

Ideal for soldering
Ideal for VOC
Not Ideal for deburring.
Not Ideal for welding
Not ideal for sanding
Not ideal for painting

Overview

Benefits

Beyond its impeccable performance, the SPH 870 holds many additional key benefits:

Portable plug and play design
Ultra-small footprint
Whisper quiet operation
CSA-certified, UL and RoHS compliant

Features

This turbine fume extraction unit comes equipped with standard features including:

iSeries (digital) control panel
Multi-stage filtration system with HEPA
Two 50 ft hoses included
8 capture arms included

Options

Need a little extra oomph? This unit is available with a variety of optional enhancements to meet your fume extraction needs:

Three Infinity or Dual Brushless motors
3″ or 4″ diameter inlets / hoses
Multiple filter sequence configurations (see Technical Specifications)
Knockout pad – F166
Universal cable – E427

Guides

SPH800-Series Owners Manual

Models and Options

Technical Specifications

Product Number	Motor	Pressure	CFM	Volts/Phase/Hz	Amps	Shipping Weight	Width	Height	Depth	Noise(dB)	Filter Sequence	Filter Efficiency
1-0037-0701 (50 ft of 3″ HD hose/Dual 3″ inlets)	Infinity (3x)	90″ WC	360	230/1/50-60	12	150lbs (68kg)	16″	30″	25″	54dB(A)	•2″ Pleated Dust Filter F071 (2x) •6” HEPA Filter F475 (2x) •4” Carbon Filter F077-GPC (2x)	•MERV 10 •MERV 18 •N/A
1-0037-0711 (50 ft of 4″ HD hose/Dual 4″ inlets)	Infinity (3x)	90″ WC	360	230/1/50-60	12	150lbs (68kg)	16″	30″	25″	54dB(A)	•2″ Pleated Dust Filter F071 (2x) •6″ HEPA Filter F475 (2x) •4″ Carbon Filter F077-GPC (2x)	•MERV 10 •MERV 18 •N/A
1-0037-0703 (50 ft of 3″ HD hose/Dual 3″ inlets)	Infinity (3x)	90″ WC	360	230/1/50-60	12	150lbs (68kg)	16″	30″	25″	54dB(A)	•Knockout Pad F166 (2x) •2″ Pleated Dust Filter F071 (2x) •4” High Capacity Dust Filter F164 (2x) •6” HEPA Filter F475 (2x)	•MERV 6-8 •MERV 10 •MERV 11-12 •MERV 18
1-0037-0713 (50 ft of 4″ HD hose/Dual 4″ inlets)	Infinity (3x)	90″ WC	360	230/1/50-60	12	150 lbs (68kg)	16″	30″	25″	54dB(A)	•Knockout Pad F166 (2x) •2″ Pleated Dust Filter F071 (2x) •4” High Capacity Dust Filter F164 (2x) •6” HEPA Filter F475 (2x)	•MERV 6-8 •MERV 10 •MERV 11-12 •MERV 18
1-0037-4702 (50 ft of 3″ HD hose/Dual 3″ inlets)	Brushless (2x)	54″ WC	440	230/1/50-60	12	150 lbs (68 kg)	16″	30″	25″	54dB(A)	• 2″ Pleated Dust Filter F071 (2x) • 6” HEPA Filter F475 (2x) • 4” Carbon Filter F077-GPC (2x)	• MERV 10 • MERV 18 • N/A
1-0037-4712 (50 ft of 4″ HD hose/Dual 4″ inlets)	Brushless (2x)	54″ WC	440	230/1/50-60	12	150 lbs (68 kg)	16″	30″	25″	54dB(A)	• 2″ Pleated Dust Filter F071 (2x) • 6” HEPA Filter F475 (2x) • 4” Carbon Filter F077-GPC (2x)	• MERV 10 • MERV 18 • N/A
1-0037-4703 (50 ft of 3″ HD hose/Dual 3″ inlets)	Brushless (2x)	54″ WC	440	230/1/50-60	12	150 lbs (68 kg)	16″	30″	25″	54dB(A)	• Knockout Pad F166 (2x) • 2″ Pleated Dust Filter F071 (2x) • 4” High Capacity Dust Filter F164 (2x) • 6” HEPA Filter F475 (2x)	• MERV 6-8 • MERV 10 • MERV 11-12 • MERV 18
1-0037-4713 (50 ft of 4″ HD hose/Dual 4″ inlets)	Brushless (2x)	54″ WC	440	230/1/50-60	12	150 lbs (68 kg)	16″	30″	25″	54dB(A)	• Knockout Pad F166 (2x) • 2″ Pleated Dust Filter F071 (2x) • 4” High Capacity Dust Filter F164 (2x) • 6” HEPA Filter F475 (2x)	• MERV 6-8 • MERV 10 • MERV 11-12 • MERV 18
