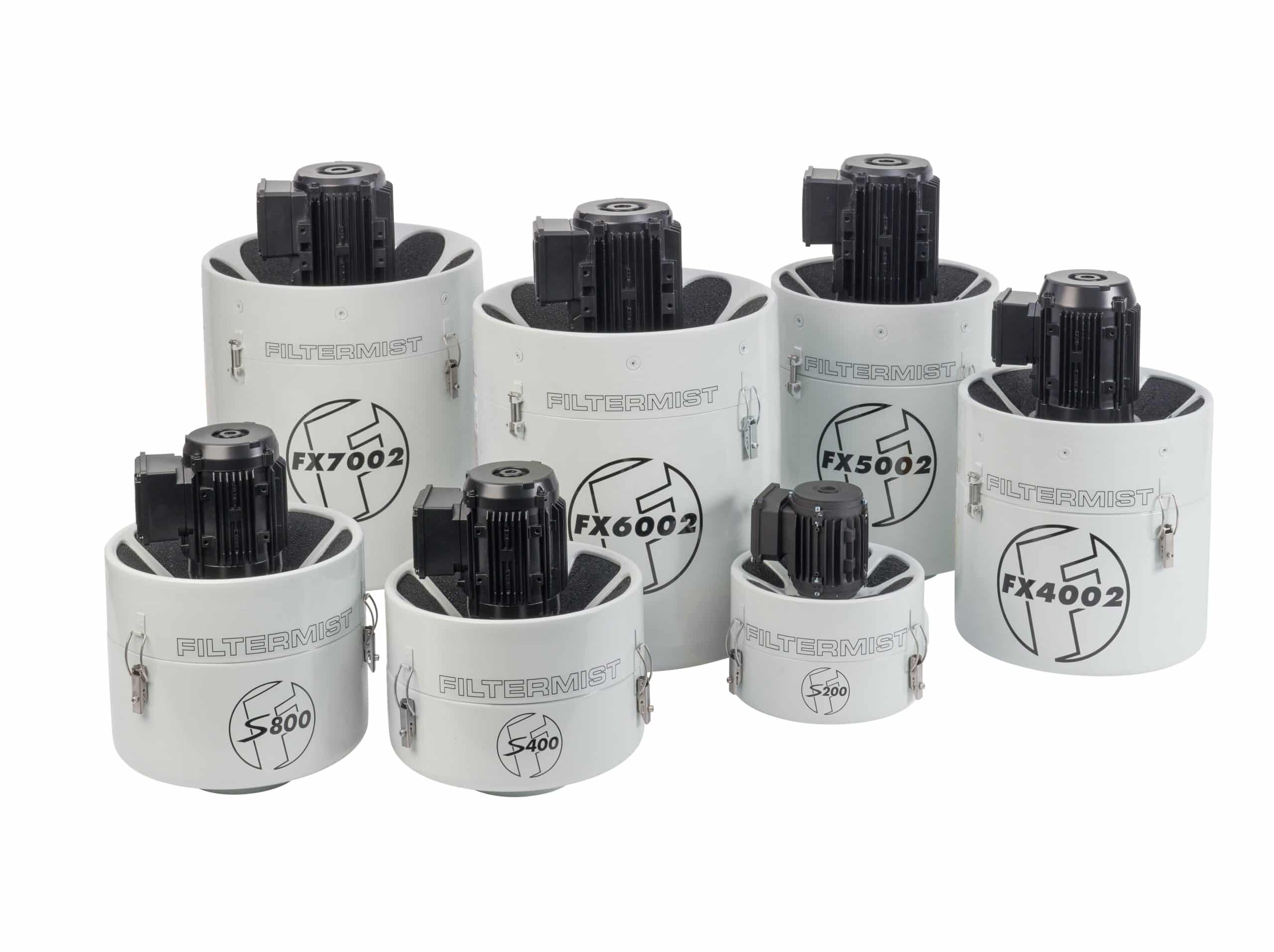

S & FX Series Oil Mist Collectors

The industry-proven solution for eliminating oil mist from manufacturing environments, trusted by world leading manufacturers since 1969.

A proven solution for eliminating oil mist, smoke, and coolant vapour from CNC machining, grinding, and general engineering environments. The S Series and FX Series mount directly onto machine tools, saving valuable floor space while delivering reliable centrifugal separation technology.

Diversitech is the Official Authorized Distributor of Filtermist Oil Mist Collectors in Canada

Recommended Applications

Ideal for EDM / Spark Erosion
Ideal for Grinding
Ideal for Machining Centers
Ideal for Industrial Saws
Ideal for Food Processing
Ideal for Lathes
Ideal for Parts Washing

Benefits

Keeps oil mist, smoke, and coolant vapour out of the air your team breathes, supporting a cleaner and safer working environment.
Lightweight and ultra-compact, the FX & S Series mount directly to the machine enclosure, or can be installed on floor stands or wall/machine brackets when direct mounting isn’t practical.
Constructed in standard mild steel, with stainless steel options available for corrosive or hazardous environments such as food-grade or high-humidity applications.
Uses proven centrifugal filtration to capture oil mist particles without disposable filter media in the primary stage, reducing ongoing consumable costs.
Scales with your operation — start with the S Series for a single machine and move up to the FX Series as airflow demands grow.

Options

Pre-filters – extend primary filter life by capturing larger particulate before it reaches the collector

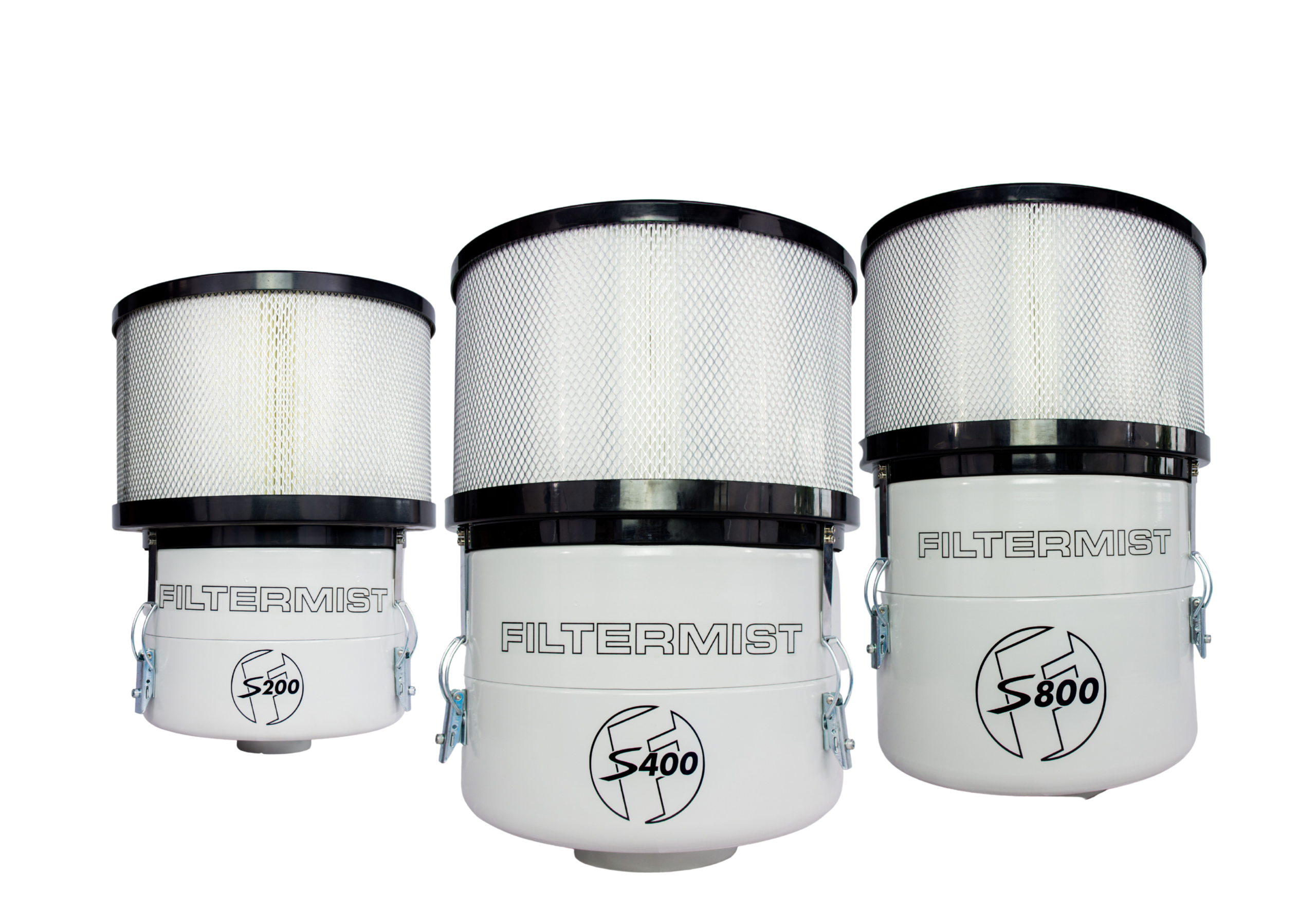

Afterfilters – high-efficiency secondary filtration for purifying exhaust air before it re-enters the workspace
Mounting Stands – for installations where direct machine mounting isn’t practical
F Monitors – real-time performance monitoring for proactive maintenance
F Save – energy-saving control technology shown to reduce energy consumption on oil mist extraction significantly in real-world installations

Models and Options

Technical Specifications

Model	Series	Airflow (60Hz)	Motor	Weight	Noise Level
S200	S	215 m³/hr (127 CFM)	0.18 kW	18 lbs	62 dBA
S400	S	500 m³/hr (294 CFM)	0.55 kW	31 lbs	65 dBA
S800	S	950 m³/hr (559 CFM)	0.55 kW	33 lbs	67 dBA
FX4002	FX	1,500 m³/hr (883 CFM)	1.1 kW	50 lbs	70 dBA
FX5002	FX	2,000 m³/hr (1,177 CFM)	1.5 kW	60 lbs	71 dBA
FX6002	FX	2,400 m³/hr (1,413 CFM)	2.2 kW	82 lbs	73 dBA
FX7002	FX	2,750 m³/hr (1,619 CFM)*	2.2 kW	82 lbs	73 dBA

How to..

Troubleshooting

Guides

No data available.

Frequently asked questions

What is an oil mist collector used for?

An oil mist collector removes airborne oil mist, smoke, and coolant vapour generated during CNC machining, grinding, and metalworking, protecting worker health and keeping the workspace clean.

What's the difference between the S Series and FX Series oil mist collectors?

The S Series covers airflow from 180–950 m³/hr and suits most single-machine applications. The FX Series scales up to 1,250–2,750 m³/hr for larger machines, multi-spindle setups, or higher-volume production environments. Both use the same centrifugal separation technology.

Can these units be mounted directly on my machine?

Yes. Both series are designed for direct machine mounting, and can also be installed using floor stands or wall/machine brackets where direct mounting isn’t feasible.

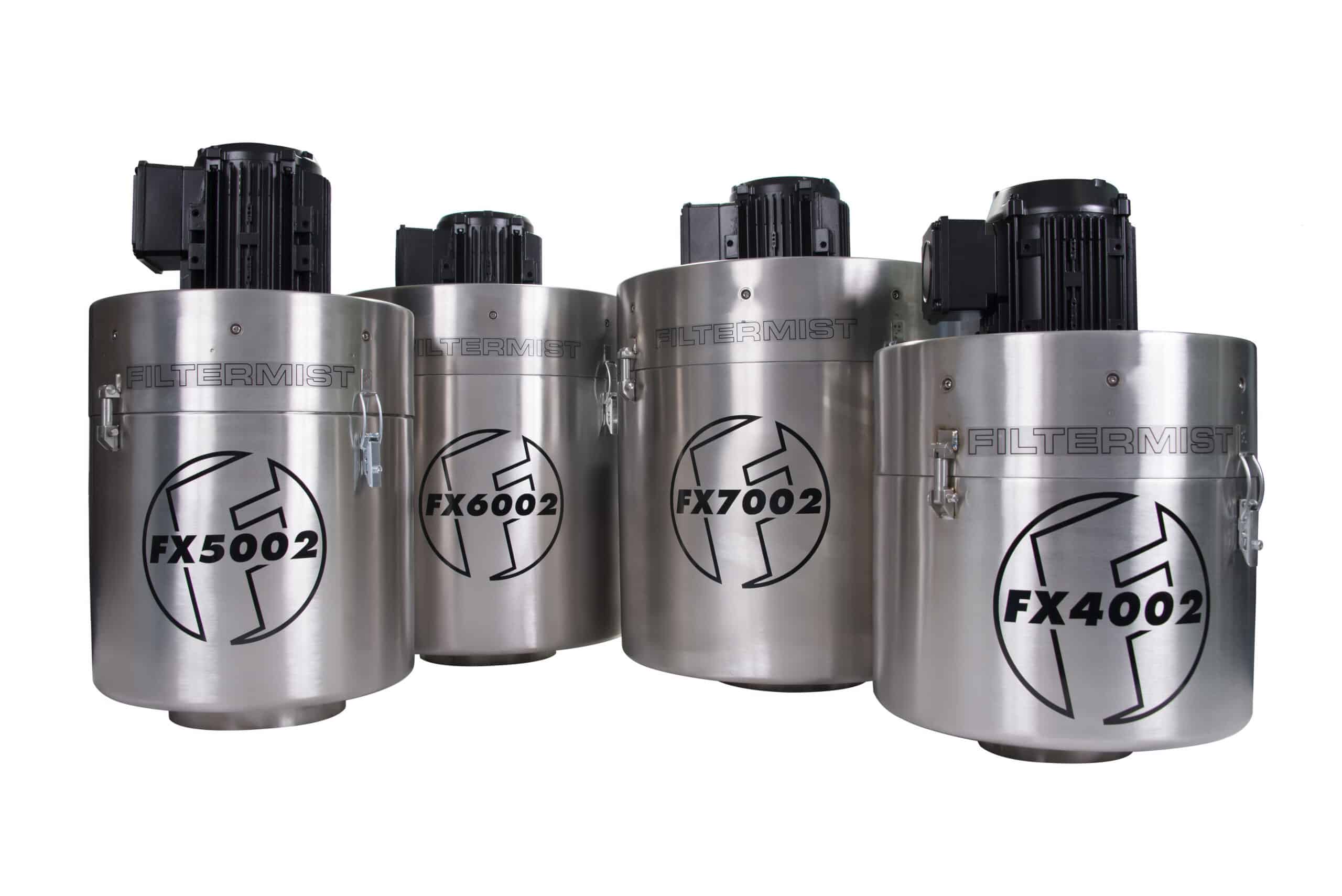

Are the S and FX Series available in stainless steel?

Yes, stainless steel construction is available for corrosive, humid, or hazardous environments such as food and beverage or high-corrosion applications.

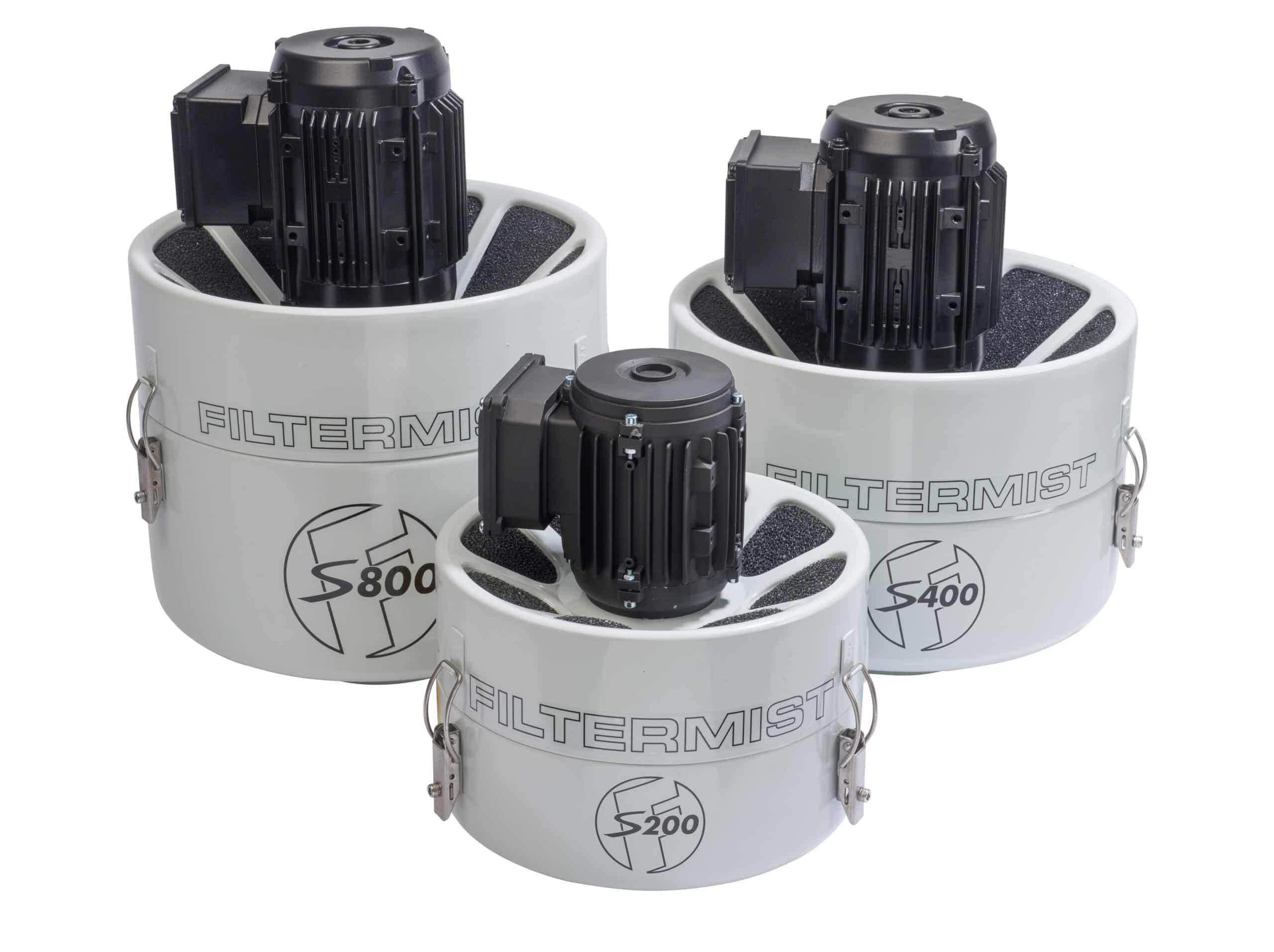

How Filtermist Units Work

Benefits

Frees up floor space by mounting directly onto the machine instead of needing a separate footprint in the workshop.
Protects air quality and worker health by removing oil mist, smoke, and coolant vapour at the source.
Lowers running costs by recovering oil for re-use and avoiding disposable filter media in the primary stage.
Scales with your operation; start with the S Series for a single machine and step up to the FX Series as airflow needs grow, without switching product families.

Features

Centrifugal separation technology (see “How Filtermist Units Work” below)
Standard mild steel construction; stainless steel available for corrosive, food-grade, or high-humidity environments
Mounting options: direct machine mount, floor stand, or wall/machine bracket (FX Series: floor stand or machine-mount)
