Typhoon WX-5000 Metal Wet Dust Collector by Diversitech

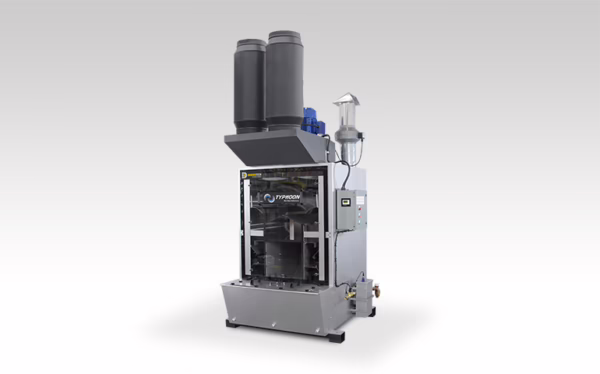

Typhoon WX-5000 Wet Dust Collector - Image 2

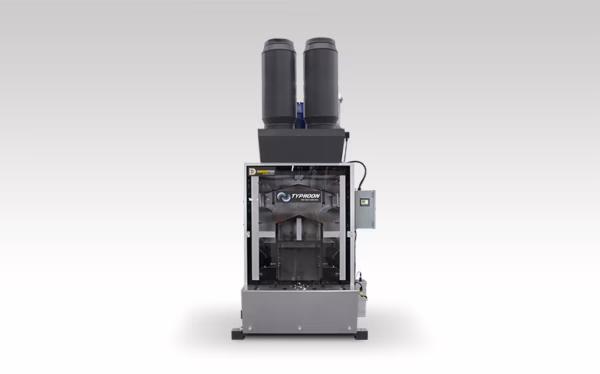

Typhoon WX-5000 Wet Dust Collector

Diversitech’s Typhoon WX-5000 Wet Dust Collector prevents the risk of workplace fire or explosion by safely capturing and neutralizing harmful combustible dusts. Diversitech’s Typhoon WX-5000 is a stainless steel wet dust collector engineered for maximum safety and high efficiency. This system captures and neutralizes harmful combustible dust at the source, preventing fire and explosion risks in industrial environments. Capable of extracting explosive metal dust, including aluminum, titanium, and magnesium, and other combustibles from process air, the Typhoon WX-5000 wet dust collector machine is designed specifically for the removal of volatile materials commonly found in machine shops, metal fabrication facilities, wood shops, and other industrial settings.

Powerful 10HP System

The Typhoon WX-5000 uses a 10HP TEFC blower to draw in airborne contaminants and filter them through Diversitech’s proprietary “water-tree” baffle design. Once inside the collector, the particles bond with suspended water droplets where they then drain down to the bottom of the collector for safe removal. With the ability to capture airborne particulate matter as small as 3 micron, the Typhoon WX-5000 high-efficiency wet dust collector guarantees cleaner air for your industrial setting.

Engineered for Maximum Dust Capture

This metal wet dust collector can collect combustible dust from your facility’s ambient air or it can be ducted directly into an industrial machine, such as a wide belt sander, to extract combustible dust directly from the source. All of Diversitech’s wet dust collectors are constructed from durable stainless steel with extreme care and attention to detail, guaranteeing that your equipment will provide your space with years of dependable dust collection service.

Recommended Applications

Ideal for sanding
Ideal for grinding.
Not Ideal for soldering
Ideal for deburring
Not ideal for welding
Not ideal for painting

Overview

The Typhoon WX-5000 is one of Diversitech’s most trusted wet dust collectors for titanium, aluminum, and other combustible metals. It removes explosive dust safely from machine shop environments, metal finishing areas, and sanding operations.

Using a 10 HP TEFC motor and advanced water filtration design, this high-efficiency wet dust collector provides powerful airflow up to 5000 CFM. Its mist eliminator filters and optional HEPA after filter enhance system performance, ensuring contaminants are removed before clean air is exhausted back into the workspace.

With durable stainless-steel construction and a corrosion-resistant design, the Typhoon WX-5000 is ideal for environments where reliability and safety are paramount.

Ideal applications include grinding and deburring, sanding and finishing, wet dust collectors for grinding, wet dust collectors for sanding, rubber grinding, aircraft maintenance, and combustible metal processing.

For simplified maintenance, pair the Typhoon WX-5000 with the WV-55 Sludge Vacuum. This powerful, air-powered cleaning system quickly removes accumulated dust, chips, and sludge from your wet dust collector. It filters out solids through a reusable 5-micron bag and returns clean water back into the collector. Designed for efficiency and safety, the WV-55 Sludge Vacuum reduces manual maintenance time and ensures your wet collector operates at peak performance.

*Please note that for the Typhoon WX series with the strainer kit option:

Drive coupler will now ship disconnected from the motor so that proper direction can easily be determined by the installer.
A document will be included in the control panel with instructions on how to verify the correct direction of rotation and how to properly reattach the coupler.
Typhoon Wet Dust Collector Product Guide

Benefits

What makes the Typhoon line stand out? These are just a few key benefits that make Typhoon a clear choice for wet dust collection machinery:

Compact footprint
Automatically adds water level, offline and online
Built to meet NFPA combustible dust compliance standards
Stainless steel construction prevents corrosion
Removes dust efficiently for cleaner, safer work environments

Features

Our machines are built to operate smoothly even when used in rugged, industrial environments, with the following construction and performance features:

Stainless Steel Wet Dust Collector with anti-corrosion construction
10 HP TEFC Motor producing up to 5000 CFM of Airflow
Low-cost Mist Eliminator Filters for optimal performance
80 Gallon Water Capacity for consistent operation
Nema 12 Control Panel with LCD Display
Optional HEPA afterfilter for submicron particulate capture
Compatible with exhaust silencer for quieter performance

Options

Our standard wet dust collectors can be enhanced with the following options to help meet your industrial air filtration needs:

Ducted Downdraft Table in four standard sizes
WV-55 Sludge-Vac
High-efficiency HEPA Afterfilter Kit (MERV 17)
Bag Strainer System to remove dust and sludge
Self-cleaning Strainer System
Optional exhaust silencer for reduced noise levels

Models and Options

The Typhoon WX-5000 Wet Dust Collector standard base model comes equipped with a 230V, 10.0 HP motor, but the following options and add-on kits are also available upon request:

undefined / 10 HP – 575V

Up to 5000 CFM

undefined Model
Motor: 10 HP / 575V/3/60Hz
Filter Type: Mist Filter
Product Number: WX-5000-100W5

Technical Specifications

Model (Product Number)	Motor (H.P.)	Air Flow (CFM)	Volts/Phase/Hz	Amps	Net Weight¹	Width¹	Height¹	Length¹	Noise (dB)	Filter Type
WX-5000-100W2	10	5000	230V/3/60Hz	28	418.67	61	117	57	78	Mist Filter
WX-5000-100W4	10	5000	460V/3/60Hz	14	418.67	61	117	57	78	Mist Filter
WX-5000-100W5	10	5000	575V/3/60Hz	11	418.67	61	117	57	78	Mist Filter

1 – Product weight and dimensions are based on base-models and may vary depending on selected product features. Please contact us for an accurate shipping quote.

Learn how to get the most out of your Typhoon WX-5000 Wet Dust Collector and troubleshoot common problems.

See our help topics and support videos below, and download the Typhoon WX-5000 Wet Dust Collector product guide and owner’s manual.

How to..

+ Set up your Typhoon WX-5000 Wet Dust Collector for the first time

Before You Begin
Designate a location for the unit near the operator that is sufficiently close to a grounded power source.

Unpacking Unit

Inspect carton for any possible damage during transit and remove packing material.
Do not tip or invert while handling.
Locate item serial number, model and electrical ratings on the nameplate. Write down this information on the provided Maintenance Record found in your owner’s manual.

Installation

Connect water feed as indicated.
NOTE: Diversitech recommends that the overflow drain be connected to a suitable and approved collection/drainage.
Connect ducts to air inlet.
1. Use smooth bore ducting as flexible ducts can have up to three times more airflow resistance.
2. Inlet ducts should be full diameter, and changes in section or size should be gradual.
The scrubber is designed to accommodate an auxiliary vent fan that operates when the scrubber is not in operation. Its function is to vent the air and gases from the scrubber.
1. The fan should exhaust outdoors.
2. If the fan exhausts indoors, check with local regulations and test the exhaust air as required.
Ensure that the backdraft damper is installed on the vent fan.
The scrubbers are all designed to be operated with exhaust silencers.
NOTE: The silencer(s) are shipped separately and should be installed on the exhaust collars of the blower housing using self-tapping screws.
Connect power as outlined in APPENDIX 1: Electrical Diagram [230/460/575v] 3-Phase Power in your owner’s manual.
Ensure that motor rotation is clockwise when looking top-down from unit.
Instructions to install 15 HP Blower (Lift truck required to hoist motor):
1. Unbolt and remove square panel, unbolt and remove blower plate.
2. Inside the blower housing, fasten 2 bolts attaching the scroll to the wet collector.
3. Using the hardware, fasten the cone to the scroll while aligning the cone in the center of the Blower Wheel.
4. Wire the motor to electrical panel using the existing wiring.

+ Perform Function Test

Before you use your unit, you’ll want to perform a function test to verify it’s in working order.

Confirm correct Voltage and Amperes.
Turn the power switch to “On” for a few seconds and check that the motor rotation is correct.
IMPORTANT: Look down the back of the motor and check that the motor fan turns in direction of arrow.
Listen closely to the motor and suction sound of the unit. Are they within the expected noise limits?
Place hand on top of the unit and feel for any unexpected vibration. Place your hand in front of the intake hood/surface to confirm the expected levels of suction.

+ Perform Routine Maintenance

Depending on application, your Typhoon Wet Dust Collector may require daily maintenance. When you see several inches of dust build up inside the wet collector water tank, remove the material as soon as possible.

Cleaning Instructions
Open the knobs or latches on the two front panels of the wet dust collector.
Inspect the mist eliminator filters inside the unit for holes or dust accumulation, replace the media if torn or dirty.
The filter frame must be replaced so that the cage side is facing upwards to prevent the media from being sucked out of the frame.
Inspect the HEPA after filters and replace if the filters are saturated.
Clean the inside of the unit completely from top to bottom, using wire brush or scraper and a pressure washer to remove all accumulated sludge and debris.
TIP: Remove the inlet duct to clean the inside of the back of the collector and inspect the inlet ductwork for dust accumulation.
Drain the dirty water using the optional WV-55 Sludge-Drain the dirty water using the optional WV Sludge Vacuum to separate the metal fines from the water, remove sludge on the bottom of the tank and skim the residual material floating on the water surfaceacuum to separate the metal fines from the water, remove sludge on the bottom of the tank and skim the residual material floating on the water surface.
IMPORTANT:
All debris must be stored in a ventilated metal drum to prevent hydrogen gas buildup.
If the collector has the optional strainer system, remove the basket and dump the accumulated dust, clean out the basket and replace it. (Refer to Appendix 5 in owner’s manual.)
Dust needs to be disposed of according to local regulations.

Ultra-Sound Cleaning
Remove the lid of the ultrasound sensor box.
Clean the sensor carefully removing any dust or debris.
Clean the dust and debris from the bottom of the sensor box.

Reset the Current Level (Ultrasonic Sensor)

View the video below for details instructions:

Adjusting Water Level

To properly adjust water levels, the motor must first be turned off:

Adjust stop SP to desired level.
Initiate the motor to adjust the running SP.

Troubleshooting

+ My Typhoon WX Unit Does Not Turn On

Confirm the correct voltage is being supplied into the panel.
If you’ve confirmed your voltage and the problem persists, contact Diversitech support for assistance.

+ The Motor Works Intermittently

Perform routine cleaning of unit.

If you’ve performed routing cleaning and the problem persists, Contact Diversitech support for assistance.

+ The Unit's Airflow Is Restricted

Check prefilters and ducts between table and scrubber. Clean if necessary.
Check scrubber panel filter. Clean if necessary.
If you’ve cleaned all prefilters and ducts, along with the scrubber and scrubber panel filter but the problem persists, Contact Diversitech support for assistance.

+ The Unit's Motor is Operating At a Level That Is Too High or Low

If the operating level of your motor is too high or too low, try the following:

If too high, empty excess water in unit until depth reaches indicated level.

If too low, check input water and probes. Fill to indicated level if necessary.
