- Capture Arm: 10
- Motor: 3.0 HP / 230V/3/60Hz
- Product Number: FRED-JR-030N2
10 Capture Arm / 3.0 HP – 230V
Up to 1800 CFM

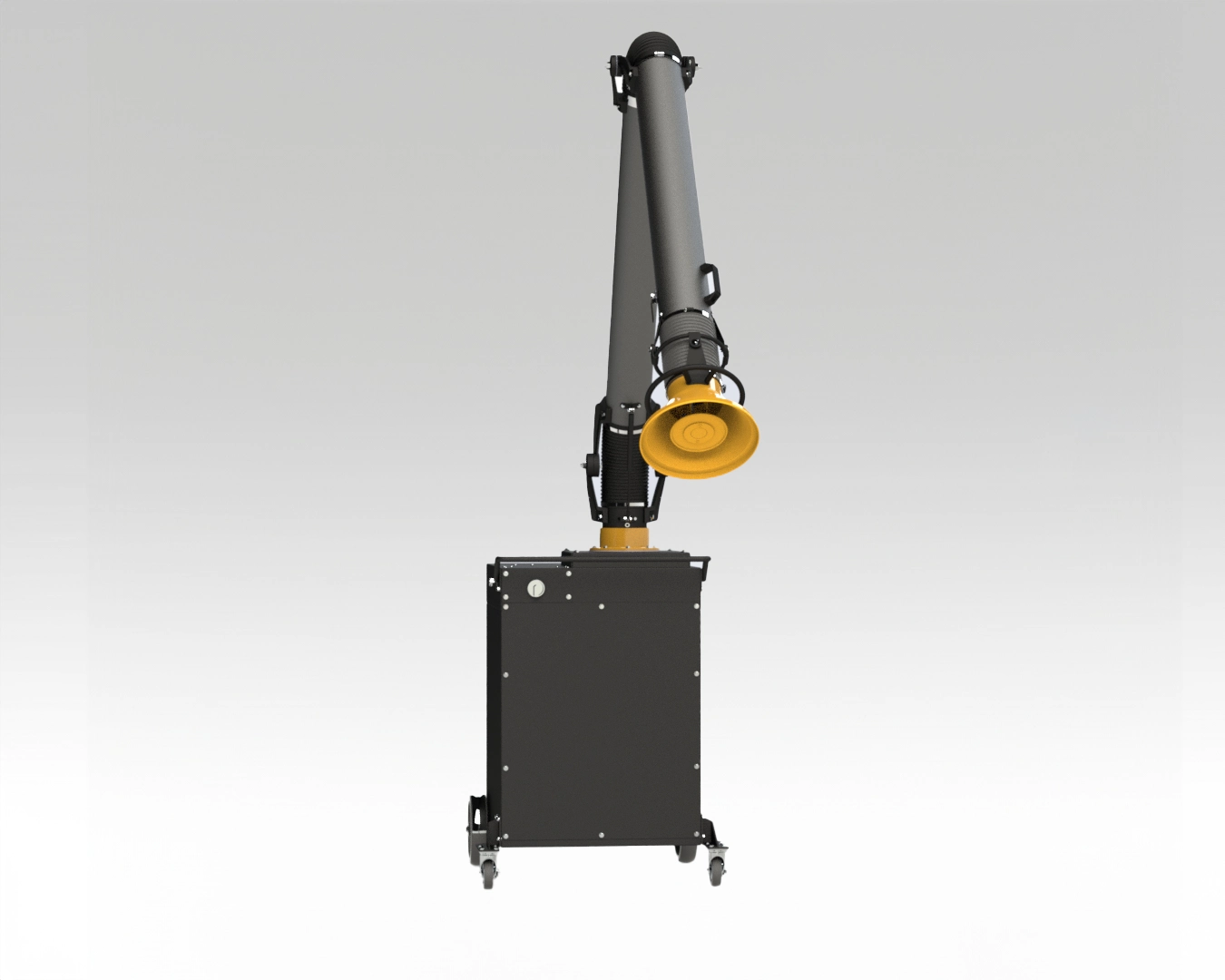

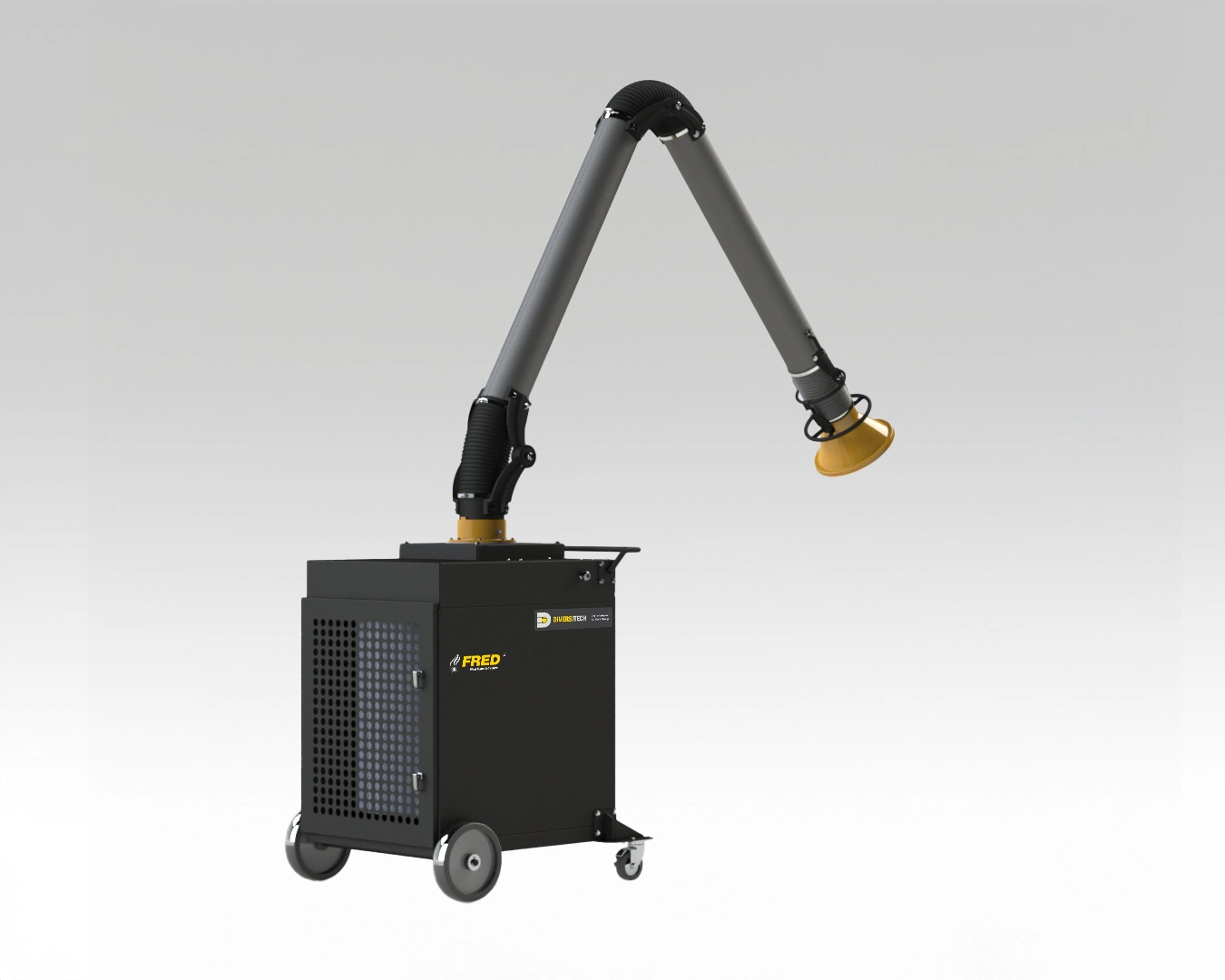

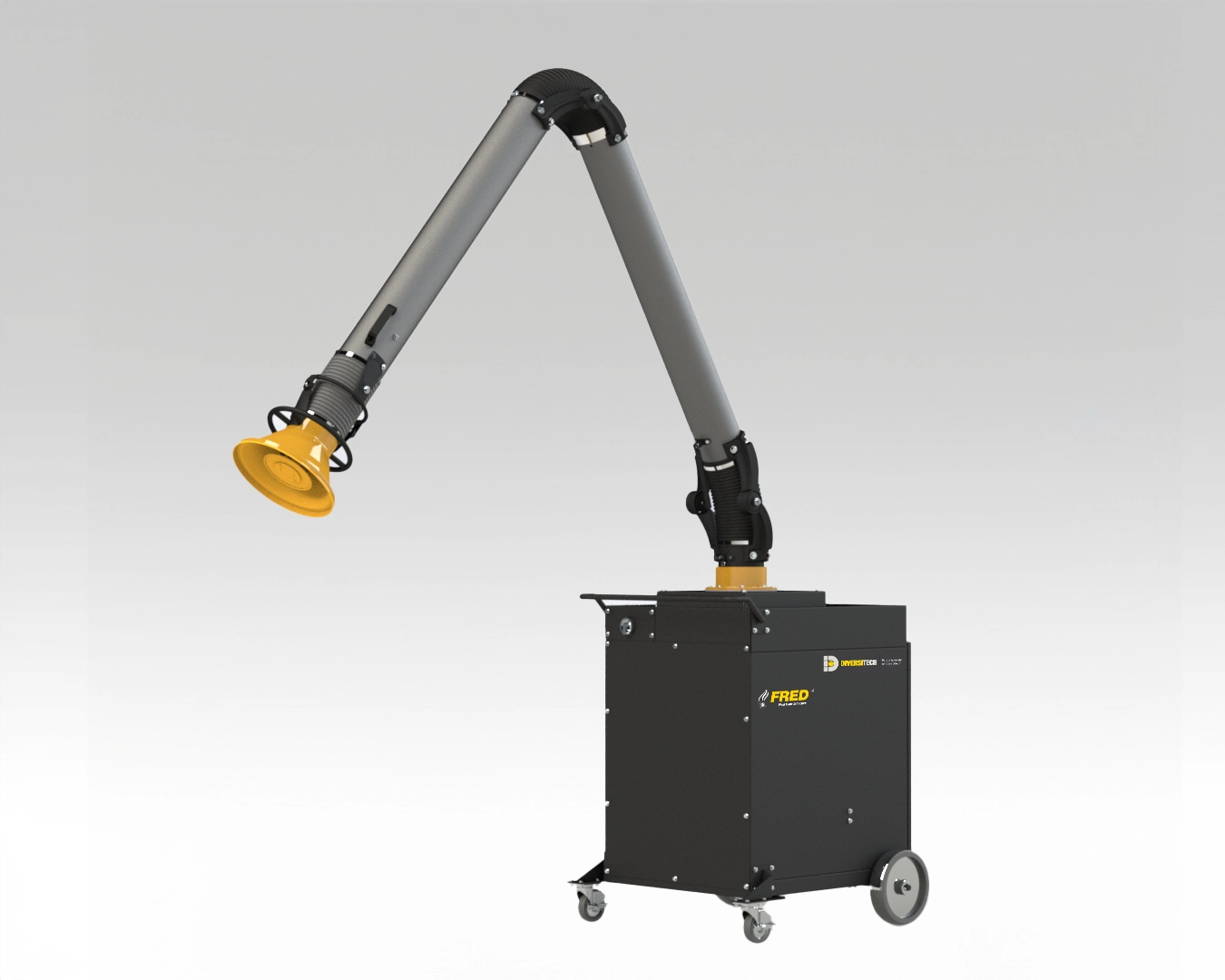

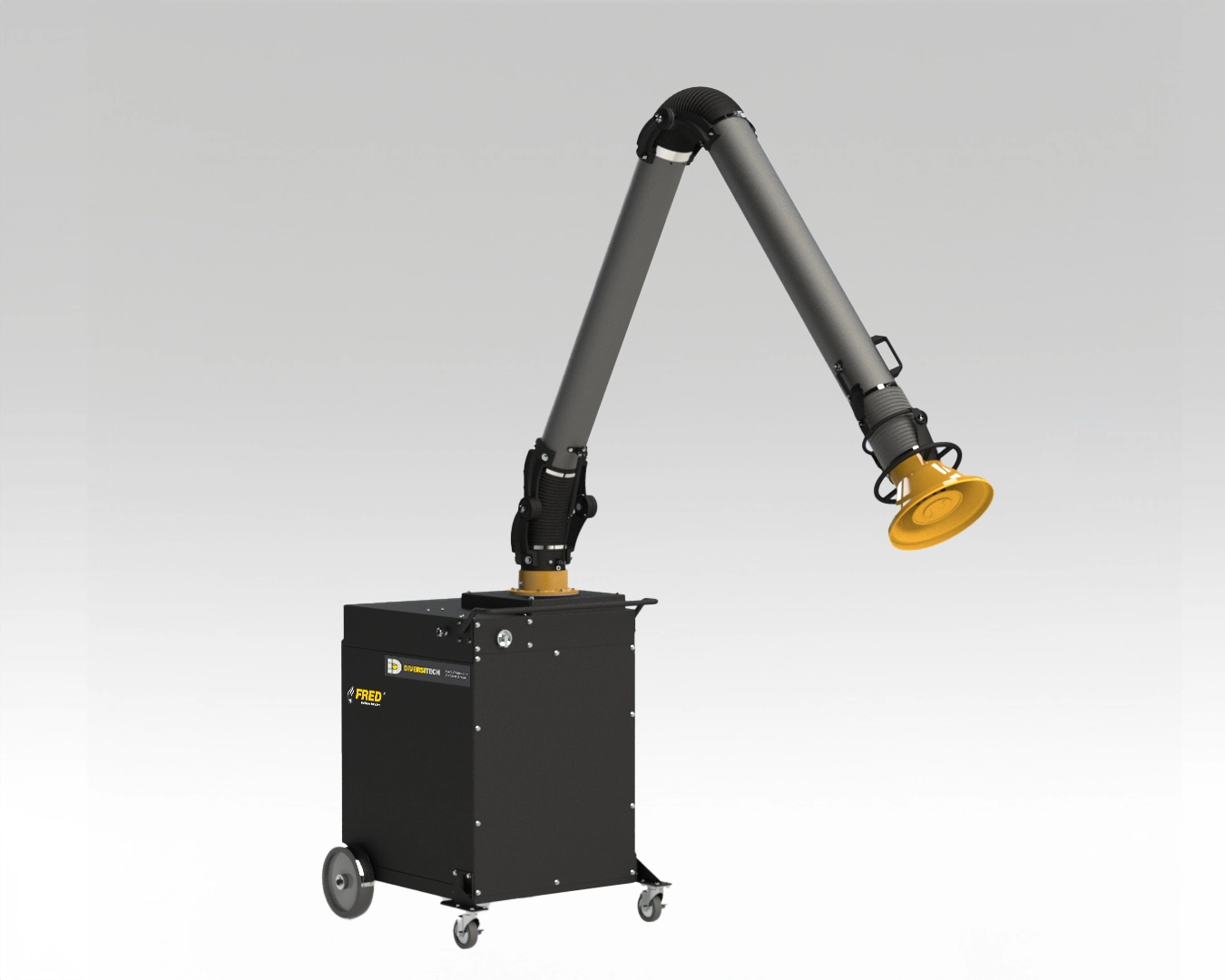

Ensure safe breathing zones for your workers with the FRED Jr. Portable Fume Extractor. Remove weld fumes, dust, and other airborne contaminants right as they are produced with the FRED Jr. This portable welding fume extractor is designed for easy transport and positioning to provide your space with a mobile air filtration system. Equipped with a Merv 15 rated Nanofiber filter that captures airborne contaminants as small as 0.5 micron, cleaner air is guaranteed when you use the FRED Jr. portable fume extractor.
The FRED Jr.’s flexible 10’ externally articulated capture arm allows for easy positioning, so you can remove contaminants at the source for max capture efficiency. Outperforming its competition, the high suction and capture velocity of the FRED Jr. portable fume extractor enable it to perform effective dust collection and filtration further from the hood.
Ensure safe breathing zones for your workers with the FRED Jr. Portable Fume Extractor. Remove weld fumes, dust, and other airborne contaminants right as they are produced with the FRED Jr. This portable welding fume extractor is designed for easy transport and positioning to provide your space with a mobile air filtration system. Equipped with a Merv 15 rated Nanofiber filter that captures airborne contaminants as small as 0.5 micron, cleaner air is guaranteed when you use the FRED Jr. portable fume extractor.
The FRED Jr.’s flexible 10’ externally articulated capture arm allows for easy positioning, so you can remove contaminants at the source for max capture efficiency. Outperforming its competition, the high suction and capture velocity of the FRED Jr. portable fume extractor enable it to perform effective dust collection and filtration further from the hood.
FRED Jr. delivers high-efficiency dust capture in a small, mobile unit that’s perfect for moving between stations or performing work on-site:
Despite its compact size, FRED Jr. is packed to the brim with carefully selected features for max fume extraction performance:
Upgrade your unit with a selection of options geared toward unique air filtration challenges and applications:
The FRED Jr. Portable Fume Extractor base model comes equipped with a 120V, 1.5 HP single-speed motor and a 10’ externally articulated capture arm, but the following options are also available upon request:
| Model (Product Number) | Motor (H.P.) | Air Flow (CFM) | Volts/Phase/Hz | Amps | Net Weight1 | Width1 | Height1 | Length1 | Cord Length (ft.) | Arm Length (ft.) | Arm Diameter | Filter Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FRED-JR-015N1 | 1.5 HP | 1200 | 120V/1/60Hz | 13.2 | 88.00 | 32.5 | 96 | 33 | 15 | 10 | 6″ | Nanotech MERV 15 |
| FRED-JR-13-015N1 | 1.5 HP | 1200 | 120V/1/60Hz | 13.2 | 92.53 | 32.5 | 109 | 33 | 15 | 13 | 6″ | Nanotech MERV 15 |
| FRED-JR-030N2 | 3.0 HP | 1800 | 230V/3/60Hz | 7.1 | 88.00 | 32.5 | 96 | 33 | 15 | 10 | 6″ | Nanotech MERV 15 |
| FRED-JR-030N4 | 3.0 HP | 1800 | 460V/3/60Hz | 3.7 | 88.00 | 32.5 | 96 | 33 | 15 | 10 | 6″ | Nanotech MERV 15 |
| FRED-JR-030N5 | 3.0 HP | 1800 | 575V/3/60Hz | 3.2 | 88.00 | 32.5 | 96 | 33 | 15 | 10 | 6″ | Nanotech MERV 15 |
| FRED-JR-13-030N2 | 3.0 HP | 1800 | 230V/3/60Hz | 7.1 | 92.53 | 32.5 | 109 | 33 | 15 | 13 | 6″ | Nanotech MERV 15 |
| FRED-JR-13-030N4 | 3.0 HP | 1800 | 460V/3/60Hz | 3.7 | 92.53 | 32.5 | 109 | 33 | 15 | 13 | 6″ | Nanotech MERV 15 |
| FRED-JR-13-030N5 | 3.0 HP | 1800 | 575V/3/60Hz | 3.2 | 92.53 | 32.5 | 109 | 33 | 15 | 13 | 6″ | Nanotech MERV 15 |
1 – Product weight and dimensions are based on base-models and may vary depending on selected product features. Please contact us for an accurate shipping quote.
Learn how to get the most out of your FRED Jr. and troubleshoot common problems.
See our help topics and support videos below, and download the FRED Jr. product guide and owner’s manual.
Tools required:
Before you use your unit, you’ll want to perform a function test to verify it’s in working order.
No data available.
Get an in-depth look at FRED Jr. and explore its key features in action.
This video showcases how it works, its standout benefits, and why it’s the perfect choice for you. Watch now and experience the innovation firsthand!
Get an in-depth look at FRED jr. and explore its key features in action. This video showcases how it works, its standout benefits, and why it’s the perfect choice for you. Watch now and experience the innovation firsthand!
